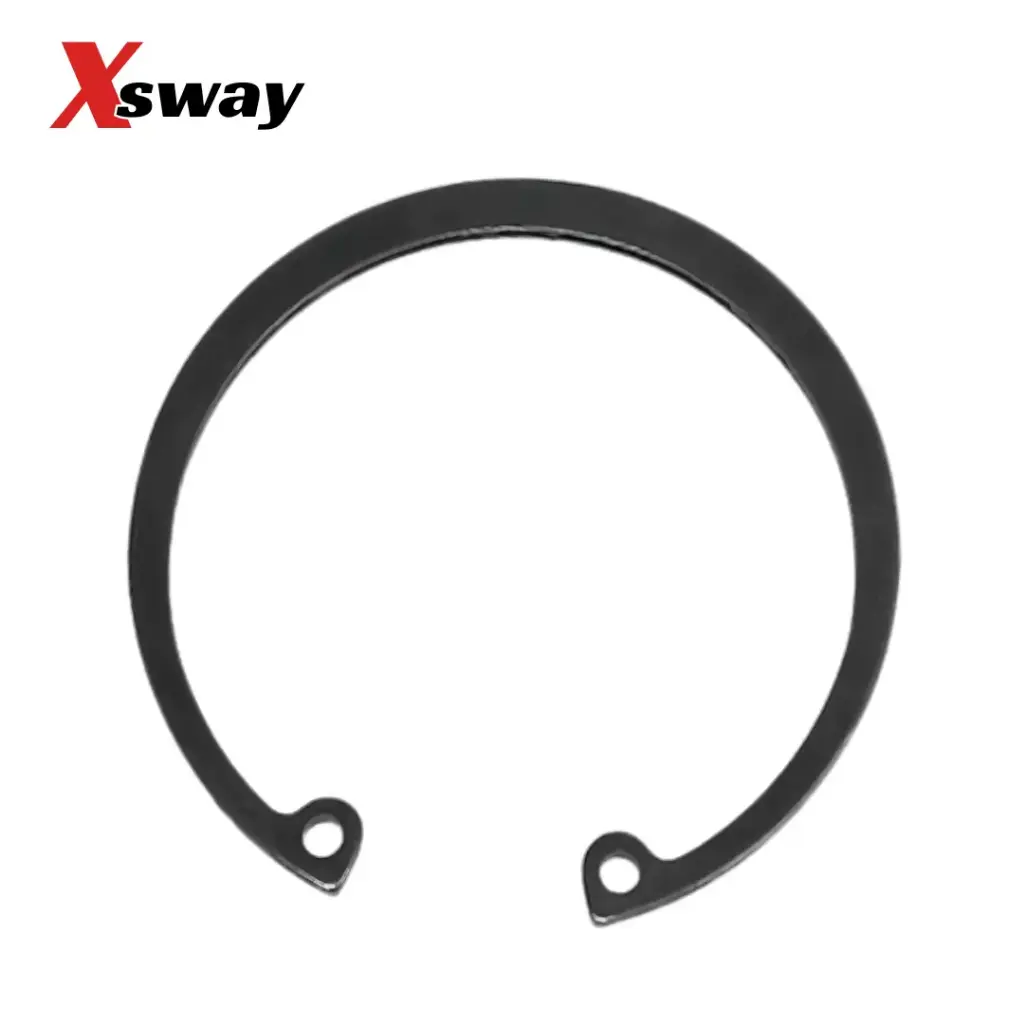

TORSION BAR CIRCLIP, EACH
SKU 81916
Category: High-Strength Torsion Bar Retaining Circlips (Heavy-Duty Suspension Hardware)
Engineered as a critical safety and retention component for heavy-duty vehicle suspension systems, this Torsion Bar Circlip provides absolute mechanical security for the torsion bar assembly. Torsion bars operate under immense, continuous rotational energy, transferring massive suspension loads directly to the vehicle chassis. Without a high-strength retention mechanism, structural vibration, severe suspension cycling, and chassis flex can cause the torsion bar to shift or walk out of its splined anchor housing or adjustment crossmember. This precision-engineered circlip snaps firmly into the retaining groove, establishing an unyielding mechanical stop that locks the torsion bar securely in place under the most demanding off-road and high-stress driving conditions.
Performance & Fitment
Application: Engineered to lock vehicle torsion bars into their splined keys, anchors, or adjustment assemblies to prevent lateral drift.
Fitment Profile: Precision-formed geometry designed to expand smoothly over the bar/housing and snap into the retaining groove with high radial tension for a zero-slack fit.
Load Rating: Optimized for high-stress heavy-duty suspension applications, offering exceptional resistance to axial thrust forces and high-frequency harmonic vibration.
Premium Construction
Material: High-Strength Spring Steel. Forged from premium structural spring steel, selected for its incredible elastic limit and memory retention. This ensures the clip maintains its tight, aggressive clamping force over years of hard suspension cycling without fatiguing or losing its shape.
Surface Finish: Advanced Corrosion-Resistant Coating. Finished with a heavy-duty, corrosion-resistant barrier designed to withstand continuous exposure to road grime, mud, moisture, and harsh undercar environments, preventing rust pitting that could lead to hydrogen embrittlement or structural failure.
Reliability: Provides a critical secondary fail-safe mechanism, protecting your front suspension geometry and preventing catastrophic dislodgement of the torsion assembly on the trail or track.
🔧 Torsion Bar Component Installation & Safety Tech Notes
Working on torsion bar suspension systems requires extreme caution and adherence to proper mechanical procedures due to the immense energy stored within the components:
⚠️ Mandatory Energy De-load Before Removal: NEVER attempt to remove, adjust, or service a torsion bar circlip while the suspension is loaded or under tension. Torsion bars store thousands of pounds of mechanical energy. Before servicing, the vehicle must be securely supported on a frame lift or heavy-duty jack stands with the suspension completely at full droop (wheels off the ground). You must use a dedicated torsion bar unloading tool to safely release the tension on the adjustment key before attempting to touch or remove the retaining circlip. Attempting to pry a clip off a loaded bar can cause components to violently eject, resulting in severe injury or catastrophic vehicle damage.
🛠️ Inspect the Retention Groove Thoroughly: Over years of operation, road grit, dirt, and rust can accumulate inside the machined circlip groove on the torsion bar housing or anchor key. When replacing a circlip, always use a wire brush, pick, and brake cleaner to scrub the retaining groove completely clean. If debris is trapped in the groove, the new circlip will not seat fully to its maximum radial depth, which can cause the clip to pop out under heavy axial loads.
❌ Never Over-Expand the Circlip During Installation: When installing the new circlip, use specialized external circlip pliers. Only expand the clip just enough to slip over the shaft or housing. Over-expanding spring steel beyond its design limit can permanently deform the metal, stretching it past its elastic yield point. A stretched circlip loses its tension, fits loosely in the groove, and compromises the mechanical safety of the entire torsion bar assembly.
🔄 Always Replace—Never Reuse Old Clips: Circlips are cheap insurance for a vital suspension component. When removing a torsion bar for maintenance, replacement, or a suspension lift, always discard the old circlip and install a brand-new one. The process of removal and years of undercar vibration degrade the structural spring memory of the old clip, significantly increasing the risk of fatigue failure if reused.
🔍 Visual Alignment Verification: Once the new circlip is snapped into place, physically verify its seating. Spin the circlip lightly in its groove with a pick or pliers—it should be free to rotate slightly but should exhibit zero axial play or wobble. Ensure that the entire circumference of the clip is fully embedded in the channel to confirm it has achieved 100% mechanical engagement.
What’s Included:
(1) Torsion Bar Circlip
Warranty:
Backed by a 1-year warranty for peace of mind.
