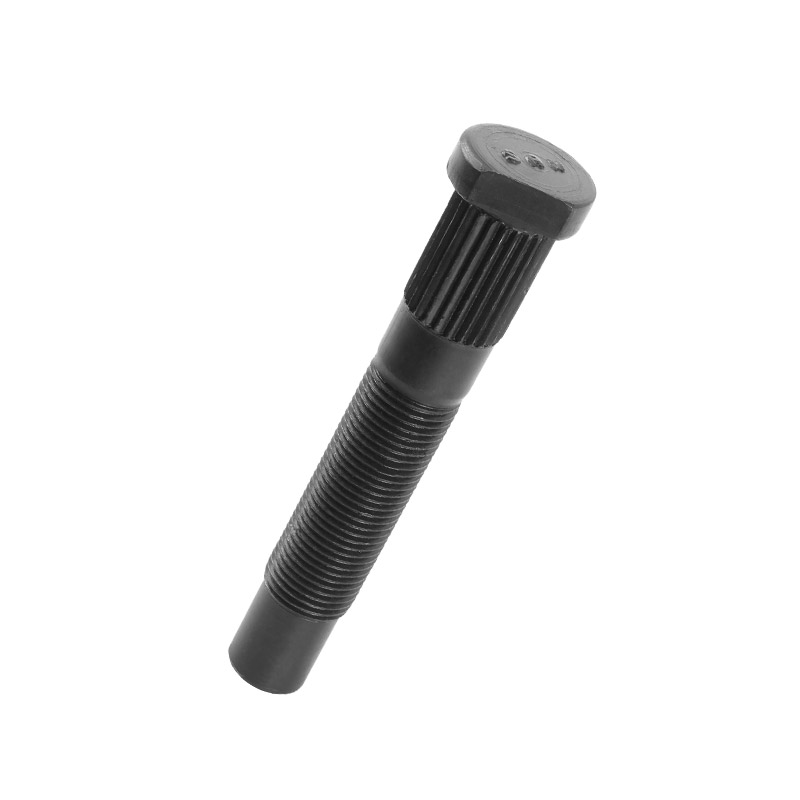

Truck Wheel Stud - 5/8-18 - 3.81" Long - Starter Lead

https://www.x-sway.com/web/image/product.template/3487/image_1920?unique=74db126

SKU 8124


Category: Wheel Studs

High-performance SAE Grade 8 equivalent wheel stud for off-road truck hubs manufactured from aircraft grade alloy steel.


Length

3.81"


Sway-A-Way’s 8124 studs are press-in, heat treated alloy steel wheel studs, designed specifically for truck wheel hubs. Our studs are cold headed and have rolled threads for superior strength over machined studs. Sway-A-Way Truck Wheel Studs are 5/8‚Äù -18 x 3.81‚Äù long and have a nut starter lead to prevent cross threading and speed up wheel mounting. The 3.81 dimension is from under the head to the end of the part. The hole size should be reamed to .640″ for these press in studs. From under the head to the end of the thread is 3.00″.Aircraft Heat Treated Alloy SteelCold HeadedLength : 3.81″Rolled Threads : 5/8″ -18SAE Grade 8 Equivalent


4.31 4.31 USD 4.31

4.31

Not Available For Sale

This combination does not exist.

Wheel Stud
