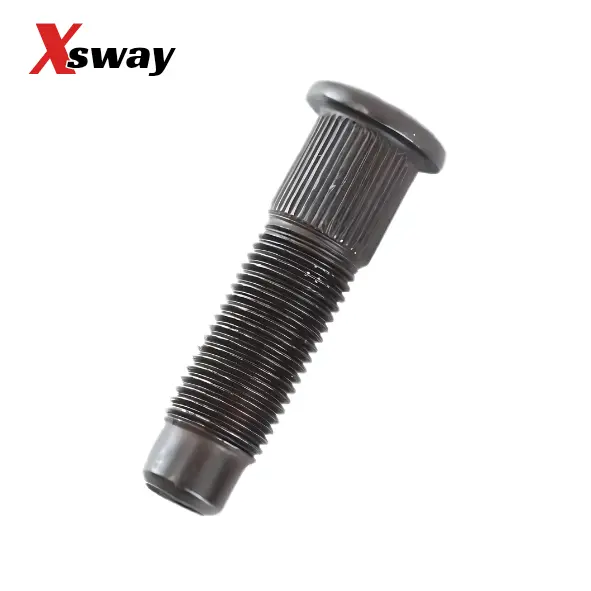

Truck Wheel Stud - 5/8-18 - 3.81" Long - Starter Lead

• • Application: Ideal for short-course racing trucks, desert racing vehicles, and extreme off-road builds using heavy-duty aftermarket truck hubs.

  • Thread Profile: 5/8-18 UNF (Heavy-duty American standard fine thread specification chosen for its superior clamping load capacity).

  • Overall Length: 3.81" (Measured from beneath the shoulder head to the very tip of the stud—providing ample length for thick-faced structural off-road or beadlock wheels).

  • Thread Length: 3.00" of clean, usable thread depth to safely accommodate your mounting setup.

  • Nose Profile: Nut Starter Lead. Features a smooth, unthreaded pilot tip that automatically aligns the lug nut and ensures straight engagement every single time.

  • Installation Profile: High-strength press-in application. Requires the hub flange holes to be precisely reamed out to .640" to achieve the mandatory interference fit.




Premium Construction

• • Material: Aircraft-Grade Heat-Treated Alloy Steel. Forged from premium-grade structural alloy steel and subjected to a strict thermal tempering process to meet or exceed strict SAE Grade 8 mechanical specs. This ensures incredible resistance to yield stretching and sudden impact failure.

  • Manufacturing Process: Cold-Headed & Rolled Threads. The head is formed via a high-pressure cold-heading machine, and the 5/8" threads are hydraulically rolled into the steel. This avoids cutting the metal fibers, keeping the internal grain structure unbroken to deliver unmatched fatigue life and eliminate stripped threads.

🚜 Heavy-Duty Off-Road Wheel Stud Installation & Engineering Tech Notes

When stepping up to massive 5/8-18 racing hardware, precise installation parameters are critical to preventing wheel assembly failure on the trail or track:

• 📐 Precise Hub Reaming (.640"): This stud relies on an exact interference fit to lock into the hub flange. Before attempting to press the new studs in, the hub holes must be mechanically machined or reamed to exactly .640". Attempting to force these studs into a hole that is too small can crack the hub flange or gall the stud splines, while a hole that is too loose will allow the stud to spin freely in the hub when you attempt to torque the lug nuts down.

• 🛠️ Always Press Studs In, Never "Pull" Them with a Nut: To properly seat these heavy-duty studs, you must use a hydraulic press or a dedicated heavy-duty mechanical stud installation tool. Never attempt to seat a 5/8" alloy steel stud by placing spacers over it and tightening a lug nut with an impact gun to "pull" it into the hub. Pulling the stud in this manner places an massive, unintended tensile overload on the brand-new threads, stretching the metal and permanently ruining the structural integrity of the fastener before it ever hits the dirt.

• ❌ Keep Thread Contact Surfaces Clean and Dry: Unless explicitly dictated by your specific hub manufacturer or racing sanctioning body, wheel stud threads are designed to be torqued completely dry. Never apply standard chassis grease, anti-seize compounds, or penetrating oils to the 5/8-18 thread faces. Lubricating the threads artificially reduces friction, giving false readings to your torque wrench and causing you to massively over-stretch and permanently deform the alloy steel at standard torque values. Clean threads with brake cleaner and a wire brush only.

• ⚙️ Open-Ended Lug Nuts Mandatory: Given the extended 3.81" length of these studs, the use of open-ended lug nuts is mandatory to guarantee that the nut clamps down fully on the wheel face. Closed-ended lug nuts can bottom out internally against the starter lead tip, giving you a false torque reading while leaving the wheel structurally loose against the hub face.

• ⏱️ Dynamic Heat-Cycle Retorque Schedule: Off-road racing wheels and heavy-duty hubs experience massive structural settling during initial use. Always recheck and retorque all lug nuts to specification after the very first lap, trail heat cycle, or within the first 25 to 50 miles of operation to account for component seating.

What’s Included

• One wheel stud

Warranty

Backed by a 1-year warranty for peace of mind.
