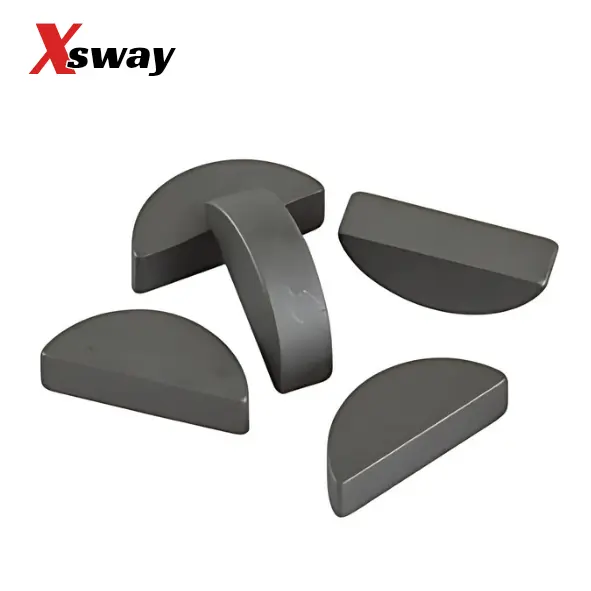

Transmission Keys - 3rd & 4th Gear - Each

SKU 8020

Category: Volkswagen High-Performance 3rd & 4th Gear Transmission Keys (Each)

​Engineered for manual transaxles built to handle high-horsepower street driving, drag racing, or brutal off-road conditions, these high-performance 3rd & 4th gear transmission keys prevent gear popping and catastrophic slider failures. Transmission shifting keys sit nested within the synchronizer assembly hub. Under hard acceleration or fast, high-RPM shifts, factory stamped-metal keys frequently bend, shear, or crack under the intense shifting leverage. This premium, heavy-duty replacement key delivers structural rigidity and geometric precision, ensuring clean slider engagement and keeping your gears locked firmly under load.

Performance & Fitment

• Application: Manual transmission assemblies utilizing standard high-performance synchronize architectures (prominently featured in classic air-cooled Volkswagen Type 1, 2, and 3 transaxles).

• Function: Locks the synchronizer sleeve into alignment on the hub, ensuring uniform pressure distribution across the slider during 3rd and 4th gear changes.

• Benefits:

  • Eliminates shifter pop-out and internal gear drift during high-load acceleration.

  • Restores crisp shifting mechanics and provides structural protection against high-RPM gear grinding.

Premium Construction

• Material: High-Grade Heat-Treated Tool Steel. CNC machined from premium billet steel alloy selected for its exceptional shear resistance, surface hardness, and long-term dimensional stability.

• Precision Manufacturing: Finished to exact micro-tolerances to provide an absolute slide fit without internal backlash. This prevents the shifting slider from wobbling or sticking during critical gear changes.

• Wear Protection: Formulated to withstand constant friction alongside brass synchro rings, preventing galling or edge rounding under intense operational heat.

What’s Included

• 1 Individual High-Performance 3rd & 4th Gear Shifting Key

  • (Note: Standard synchronizer hubs require three keys total for a complete assembly overhaul. It is highly recommended to replace keys in sets of three to maintain identical alignment tolerances).

⚙️ Manual Transaxle Rebuild & Synchronizer Tech Notes

Replacing internal shifting keys requires absolute mechanical precision and specialized bench equipment during transaxle assembly:

• 🛠️ Always Install Shifting Keys as a Set: Never mix old, partially worn factory keys with a single new performance key inside the same synchronizer hub. Because keys dictate the sliding alignment of the synchro ring and slider sleeve, even a few thousandths of an inch of variance between mismatched keys will cause the sleeve to cock sideways. This leads to severe shifting resistance, notchiness, and rapid localized synchronizer ring wear. Always replace keys in complete sets of three per hub.

• 📐 Verify Detent Spring Tension and Seating: Shifting keys are held under continuous radial pressure by circular detent wire springs. When reassembling the 3rd/4th gear hub stack, carefully inspect these wire springs for tension loss or distortion. Ensure the tiny hooked ends of the springs are securely seated inside the internal grooved notches of the keys according to factory shop manuals. Weak or incorrectly oriented springs will allow the keys to float out of position, locking up your shift slider mid-transition.

• ❌ Clean and Inspect Shifting Hub Splines: Before slipping the new tool-steel keys into the hub slots, thoroughly deburr and clean the hub channels using a light solvent or wire brush. Trapped metal shavings or old hardened gear oil can cause a key to stick. The keys must slide smoothly and freely inside their slots with minimal lateral rocking movement.

• ❌ Avoid Forcing Components During Press-Assembly: Reassembling transmission main shafts requires the use of a hydraulic shop press and matching press sleeves. Never use a hammer or mallet to drive gears or synchronizer hubs onto the splines. Shocking the assembly can easily chip or deform the corners of the new shifting keys, rendering them useless and introducing destructive metal debris into your transmission fluid.

• 🧴 Pre-Lubricate with GL-4 Gear Oil: Never assemble transmission internals dry. Before sliding the gear stacks back into the case, completely submerge the keys, synchronizer rings, and slider sleeves in high-quality GL-4 rated gear lubricant. (Note: Avoid aggressive GL-5 gear oils in vintage VW transaxles unless specified safe for yellow metals, as certain sulfur-phosphorus additives can chemically degrade the soft brass synchronizer rings that interact directly with these shifting keys).

What’s Included

• (1) Transmission key for 3rd or 4th gear

Warranty

• Backed by a 1-year warranty for peace of mind.
