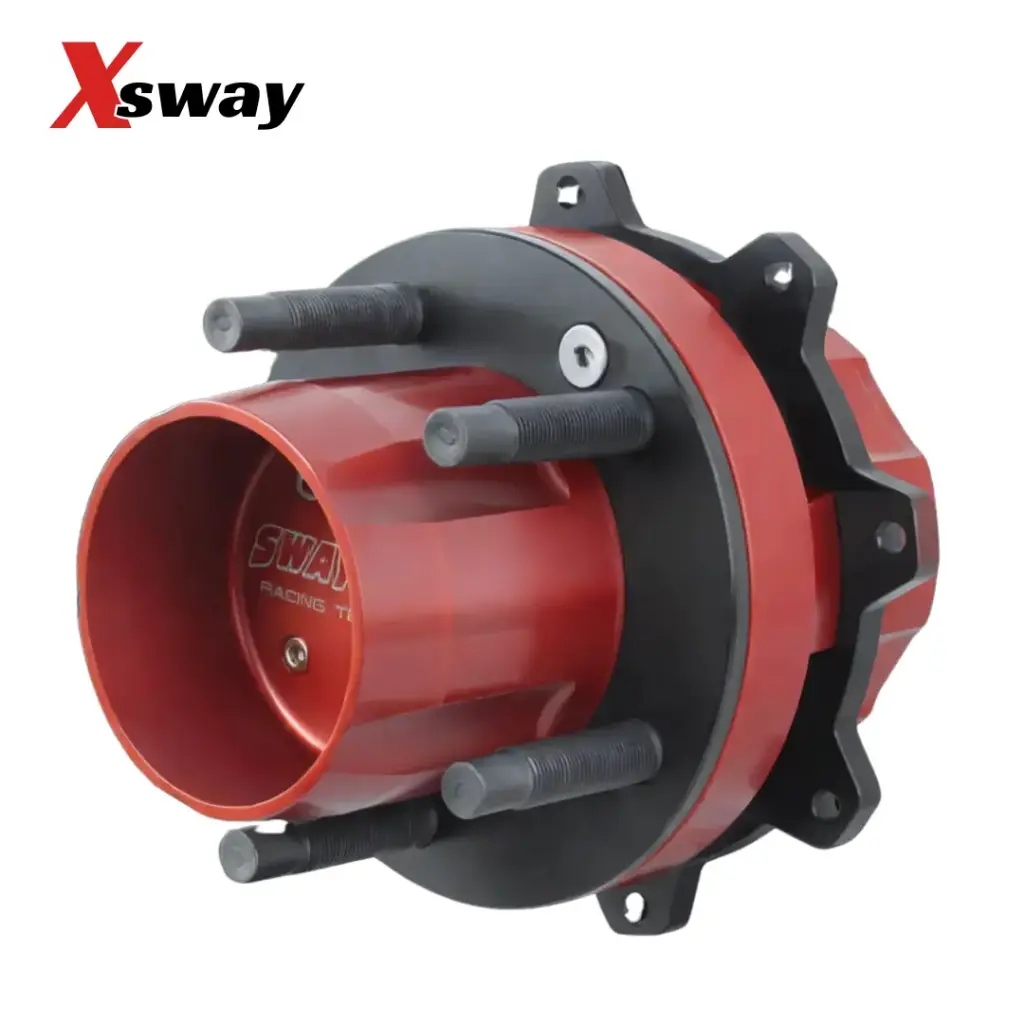

2.50 Billet Rear Hub (5 on 5.5), 35 Spline Axle, 8 on 7.625" Rotor
SKU 7801R-35
Category: Hubs
Product Overview:
The Sway-A-Way 2.50" Billet Rear Hub is engineered for high-performance off-road and racing applications. Designed to be paired with Sway-A-Way’s weld-in rear locking snouts, this hub features a billet hub body, Timken bearings, SKF seals, a 4.25" tapered cap, and two drive plate options for exceptional durability and precise performance.
Specifications:
| Car Make | Off-Road, Custom Applications |
| Model | Universal |
| Application | Off-Road, Racing, High-Performance |
| Adjustability | Compatible with Various Rotor Mount Options |
| Years | Varies by Application |
| Hub Width | 2.50" |
| Bolt Pattern | 5 on 5.5 |
| Rotor Mount Pattern | 8 on 7.625" |
| Axle Spline | 35 Spline |
| Bearings | Premium Timken Roller Bearings |
| Seals | SKF Seals |
| Wheel Studs | 5/8"-18 SAE Grade 8 Equivalent, Rolled Threads |
| Stud Material | 4340 Steel |
| Seal Retainer | Steel Retaining Ring |
| Cap Diameter | 4.25" (Tapered) |
| Availability | Available on backorder |
Premium Construction:
Materials:
Billet aluminum hub body for maximum strength and lightweight performance.
Timken roller bearings and SKF seals ensure long-lasting durability.
Tensile Strength:
Rolled-thread SAE Grade 8 wheel studs provide increased load resistance and shear protection.
Precision Manufacturing:
CNC-machined for exact fitment and reliability.
Heavy-duty rotor mount bolts (10x 5/16" Grade 9 bolts with 7/16" 4340 shear sleeves).
Performance:
Wider bearing spacing (1.50" between outer races) for increased bearing life.
Compatible with Sway-A-Way weld-in rear locking snouts for precise preload adjustments.
Available with 35 or 40 spline drive plates.
Cross-drilled bolts ready for safety wire to enhance security.
Warranty:
Backed by a 1-year warranty, ensuring reliability and peace of mind.
