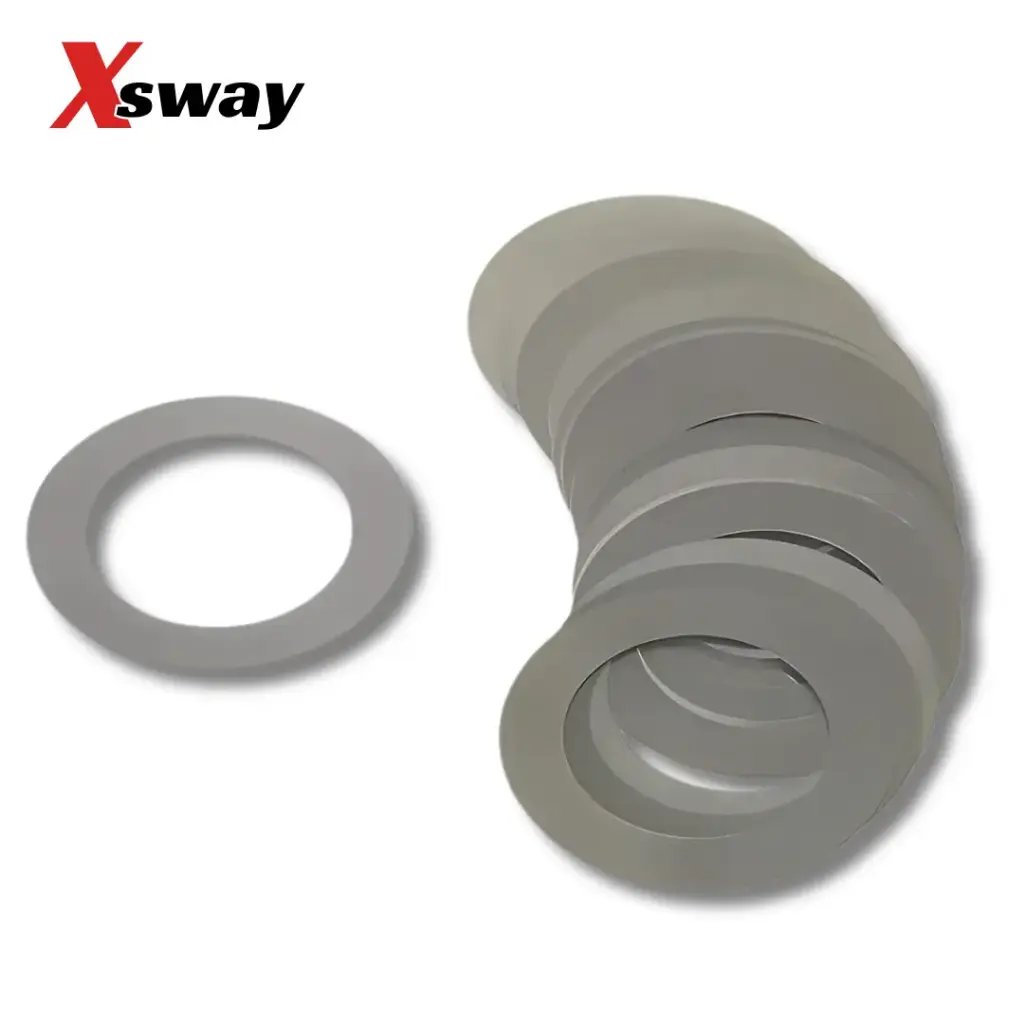

Link Pin Shims for King Kong 7/8" Dia. Pins - Set of 40
Application: Custom high-travel off-road front beams, sand cars, and racing buggies utilizing aftermarket King Kong 7/8" diameter link pin spindles and trailing arms.
Purpose: Dictates front-end wheel camber angle and establishes the precise horizontal spacing of the trailing arms relative to the spindle face.
Kit Quantity: 40 Individual Shims (Provides an extensive selection of spacing thicknesses to safely map out the exact tracking layout of your front suspension clip).
Material: High-Grade Structural Carbon Steel. Stamped from premium-grade, ultra-flat steel alloy designed to handle immense compressed clamping loads without crushing, deforming, or losing dimensional thickness under continuous impact.
Precision Tolerances: Inner diameter is precision-bored to slide cleanly over 7/8" nominal pin shafts, eliminating slop while preventing binding along the pin shoulder.
Corrosion Resistance: Specially treated to withstand severe environmental exposure, including sand abrasion, mud, moisture, and high-pressure washing.
🧮 The Logic of Link Pin Shimming: Link pin shims serve a dual purpose. First, changing the ratio of shims on the inside versus the outside of the trailing arm directly adjusts your front wheel camber angle. Second, the total number of shims used across both upper and lower pins must equal a fixed mathematical baseline to guarantee the upper and lower trailing arms travel in perfectly parallel vertical arcs. Miscalculating the shim stack will force the arms to twist inward or outward as the suspension compresses, resulting in severe suspension binding, accelerated bush wear, and unpredictable steering deflections.
❌ Never Mix and Match Shim Profiles: This kit is explicitly engineered for 7/8" diameter King Kong hardware. Standard vintage Volkswagen link pin beams utilize much smaller 18mm or 22mm hardware. Do not attempt to use standard VW shims on a 7/8" pin (as they will not fit), and never use oversized washers or loose-fitting substitute shims. A loose shim will rapidly oscillate under racing conditions, chewing through the spindle face and destroying the pin threads.
❌ Clean and Deburr the Contact Surfaces: Before selecting your shim stacks, thoroughly clean the faces of the trailing arm bosses, the spindle receivers, and the pins themselves. Any trapped sand grain, burr from welding, or old hardened grease will corrupt your alignment measurements. Wipe down all 40 steel shims with a clean solvent to remove any protective storage oils before calculating your final stack.
❌ Liberal Lubrication is Mandatory: Link pin shims are subjected to constant oscillating friction as the front trailing arms sweep through their suspension cycle. Assembling the shim stacks dry will cause immediate metal-on-metal galling, high heat buildup, and a rapid breakdown of your front-end alignment tolerances. Coat each shim generously with a premium, high-impact waterproof chassis grease or a high-pressure molybdenum-disulfide compound during final assembly.
- 🔩 Torque and Pin Pre-Load Verification: Once your calculated shim stack is resting on the 7/8" pins, tighten the link pin lock nuts to the designated racing specification. After torque is applied, manually grab the spindle assembly and cycle the suspension by hand through its entire travel arc. The spindle should pivot smoothly and effortlessly from top to bottom. If you feel any catching, tight spots, or binding, your shim count is uneven or biased, requiring immediate disassembly and stack recalibration.
Premium Construction
🏁 Off-Road King Kong Suspension Tech & Alignment Notes
Setting up an oversized 7/8" King Kong link pin front end differs significantly from a standard vintage street car, requiring absolute precision during assembly to prevent premature component failure:
What’s Included
- Set of 40 link pin shims
Warranty
Backed by a 1-year warranty for peace of mind.
