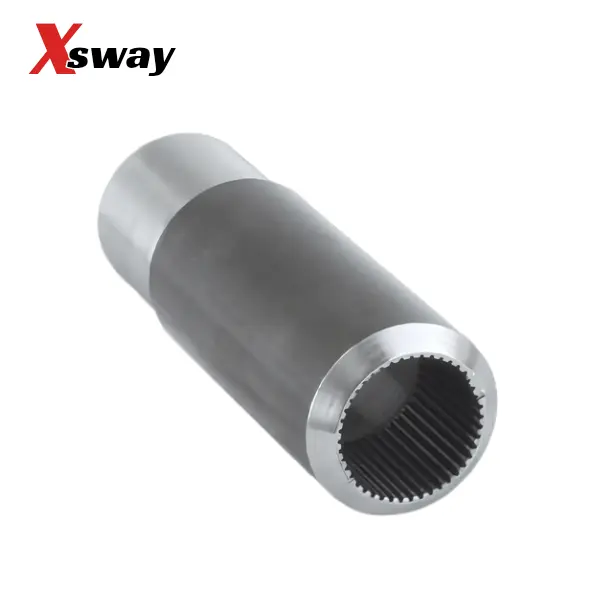

Spring Plate Collar - 5.910" Long - 44 Tooth VW

​Performance & Fitment

• • Application: Custom-fabricated Volkswagen rear spring plates, long-travel trailing arm assemblies, specialized sway bar arms, and custom torsion bar linkages.

  • Spline Count: 44 Teeth (Matches the standard outer spline profile found on many classic air-cooled VW torsion bars).

  • Dimensional Specifications:

    • Collar Overall Length: 5.910"

    • Spline Engagement Length: 1.87"

    • Outer Diameter (OD): 1.87"

    • Pressure Angle: 30 Degrees




​Premium Construction

• • Material: 4130 Chromoly Steel. Forged from premium-grade 4130 alloy steel, providing an exceptional strength-to-weight ratio and excellent structural integrity under extreme torsional load.

  • Weldability: Highly responsive to TIG and MIG welding processes, making it ideal for joining to laser-cut spring plate steel or tubular suspension links.

  • Precision Manufacturing: Precision-Broached Splines. Internal spline paths are broached to exact tolerances, ensuring zero rotational backlash and a flawless slip-fit over matching 44-tooth torsion bar ends.

  • Fabrication Detail: 45-Degree Edge Chamfer. Features a clean, machined 45-degree chamfer on the edge to facilitate deep weld penetration and seamless structural transition during assembly fabrication.

🛠️ Chromoly Fabrication & VW Suspension Tech Notes

Integrating a 4130 splined collar into a custom suspension build requires precise fabrication techniques to maintain structural integrity and prevent component distortion:

• 👨‍ welds: 4130 Chromoly Welding Best Practices: Because this collar is machined from 4130 chromoly steel, appropriate welding procedures must be observed to prevent brittle zones near the weldment. If welding this collar to thick spring plates or suspension arms using the TIG process, a mild-steel filler rod such as ER70S-2 or a high-strength ER80S-D2 is highly recommended to ensure the weld remains ductile and resistant to cracking under severe chassis twisting.

• 🔥 Control the Heat to Prevent Spline Distortion: Excessive heat during the welding process can distort the collar's internal diameter or warp the precision-broached spline profile. To avoid this, utilize a heat-sink heatsink (such as an old, scrap matching torsion bar end wrapped in anti-seize) inside the collar while welding, or weld in short, alternating segments (stitch welding) to allow the heat to dissipate evenly.

• 📐 Verify Spline Indexing Before Final Welding: Classic VW torsion bars utilize an unequal spline layout (40 splines inside the chassis, 44 splines on the outer end) to achieve micro-adjustments via "hunting tooth" rotation. When welding this collar to a custom spring plate or arm, ensure your indexing angle is perfectly mapped out relative to the chassis centerline. Miscalculating the resting angle of the collar by even one spline tooth can throw your baseline ride height off significantly.

• ❌ Post-Weld Inspection and Cleaning: After the fabrication and welding processes are complete, allow the assembly to cool naturally at room temperature—never quench chromoly steel in water or oil, as this induces extreme brittleness. Once cooled, run a wire brush or spline-cleaning tool through the internal teeth to remove any accidental weld spatter, scaling, or anti-seize residue before attempting final chassis mockup.
