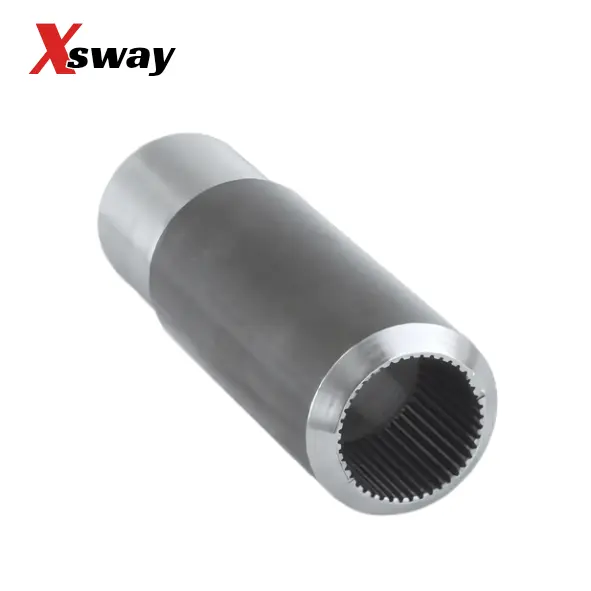

SPRING PLATE COLLAR, 5.910 LNG Splined Collar - 44 tooth VW

SKU 5406

Categories: 24 11/16", Collars, Spring Plates, Volkswagen

Sway-A-Way’s VW 44-tooth Splined Collar is an ideal solution for fabricating custom sway bar arms and spring plates. Designed for precision and durability, this splined collar measures 1 7/8 inches in diameter and 5.91 inches in length, with approximately 1.87 inches of spline on one end. It is commonly used in our spring plate assemblies and offers exceptional versatility for custom fabrication projects.

Crafted from high-quality 4130 series steel, these collars are precision-broached to match common spline configurations, ensuring a precise fit. Sway-A-Way’s splined collars allow fabricators complete control over fitment and finish, making them a preferred choice for custom sway bar arms and spring plates. Each collar features a 45-degree edge chamfer for smoother integration and is available in various splines and lengths to meet different application needs.

Manufactured from 4130 series steel, these collars provide excellent weldability. They are precision-machined and broached with a 1.43-inch, 44-tooth spline. The pressure angle is 30 degrees, the overall diameter is 1.87 inches, and the total length is 5.91 inches. Additional options are available on our Splined Collars page.
