Spring Plate Set - VW Swing Axle - Race - 7.810" Collar
SKU 4503
Category: Volkswagen Race Spring Plates (Extended 4130 Chromoly)
The 4503 is a heavy-duty, competition-grade spring plate set engineered for high-stress Volkswagen Swing Axle setups and specialized Off-Road IRS rear buggy applications. Built to withstand the brutal punishment of desert racing, stadium short-course, and extreme trail environments, these plates swap standard spring steel for premium 4130 chromoly. Featuring an extra-long 7.810" precision-welded collar, these race plates are built to accommodate longer torsion bars for increased wheel travel and smoother suspension cycling without plate deflection or twist.
Performance & Fitment
Application: High-performance Volkswagen Swing Axle setups and custom long-travel Off-Road IRS buggy applications (e.g., Baja Bugs, Sandrails, Class 1-2/1600, or Class 5 cars).
Torsion Bar Compatibility: Engineered exclusively for extra-long 26 9/16" rear torsion bars.
Collar Length: 7.810". The extended splined collar provides deep engagement and maximum structural support at the chassis connection point.
Versatility: Designed primarily for extreme racing environments, though the premium 4130 construction can be readily modified or fabricated for custom rear suspension geometries.
Premium Construction
Material: 1/4" Thick 4130 Chromoly Steel. This high-tensile, aerospace-grade alloy provides a massive increase in yield strength over traditional spring steel, completely eliminating the twisting or permanent bowing common under aggressive off-road landing impacts and hard launches.
Advanced Heat Treatment: The entire assembly—including the precision jig-welded collars—undergoes a post-weld thermal heat-treatment process. This relieves internal stresses from the welding arc and through-hardens the component for ultimate fatigue resistance.
Finish: Black Zinc Plating. Delivers an aggressive, sleek appearance while providing excellent galvanic corrosion resistance against harsh environmental elements, mud, and track debris.
🏁 Race Drivetrain & Suspension Tech Notes
Deploying extended chromoly race spring plates requires precise motorsport-level installation and geometry setup:
⚠️ Caution: High-Tension Energy: Torsion bars and spring plates store immense mechanical force. Never attempt to pry the spring plate off the lower chassis stop without using a dedicated spring plate unloading tool or a securely controlled heavy-duty floor jack. An unguided release of this assembly can cause catastrophic injury or severe frame damage.
❌ The 26 9/16" Bar Advantage: Utilizing a longer torsion bar coupled with a 7.810" collar allows the rear suspension to achieve a highly progressive, smoother effective spring rate. This is critical for off-road buggies where you need the suspension to stay compliant over high-speed whoops while preserving maximum wheel travel.
❌ Torsion Bar Match Verification: You must verify your torsion bar length before finalizing your chassis build. Forcing a 7.810" collar spring plate onto shorter bars (like 21 3/4" or 24 11/16") will leave the bar floating freely inside the tube or prevent the outer torsion housing cover plate from seating flush against the chassis.
❌ High-Performance Bushing Lubrication: For racing applications, high-durometer urethane, delrin, or bronze bushings are typically used. Apply a liberal amount of premium waterproof, silicone- or teflon-based grease to the inner and outer contact patches of the plate collar. This prevents bushing binding and eliminates the heavy squeaking that occurs during aggressive suspension cycles.
❌ Mounting Alignment: Whether indexing for a Swing Axle flange or custom IRS trailing arms, ensure all pivot components are in perfect alignment. Use Grade 8 or higher hardware, torque to strict racing specifications, and secure the bolts with a drop of red thread-locking compound or safety wire to prevent them from loosening under severe race vibrations.
What’s Included

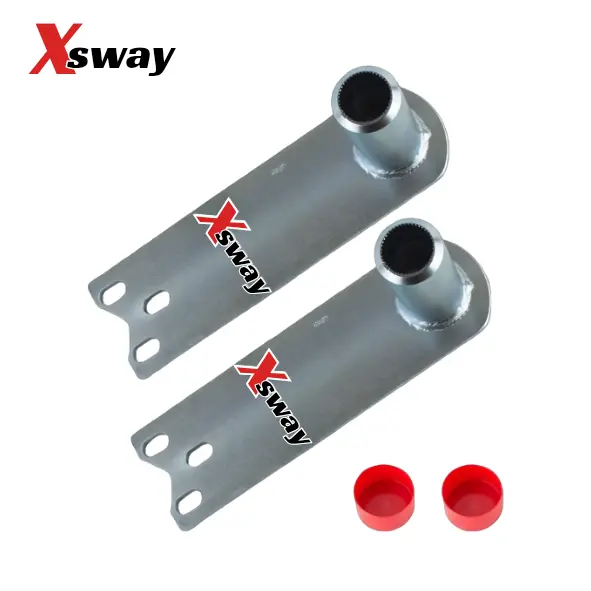

(1) Pair of Racing Swing Axle Spring Plates with caps
Warranty
Backed by a 1-year warranty for peace of mind.
Stock Information
Available for backorder.
