Sway Bar Arm

SKU 4-125

Categories: Off-Road, Sway Bars

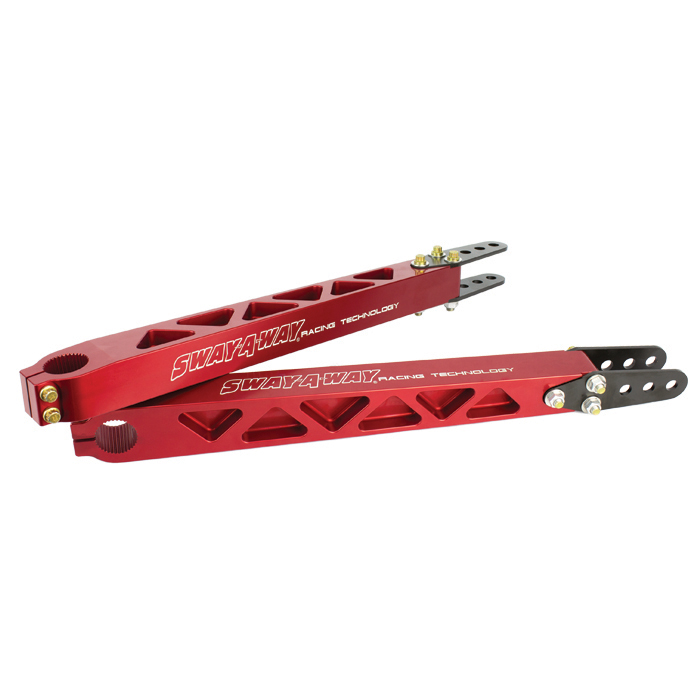

Pocketed billet aluminum sway bars arms designed for custom street and off-road applications. 1 1/4-48 spline.

Sway-A-Way’s sway bar arms are an excellent choice for those building a custom sway bar setup. Precision CNC machined from solid billet 6061-T6 aluminum, these durable arms are designed for both street and off-road sway bar applications.

They are engineered to pair seamlessly with our custom street and off-road sway bars and can be purchased at a discount as part of our Off-Road Sway Bar Kit, which includes the arms, a custom sway bar, and custom drop links. This arm is specifically designed to fit our 4-1001 sway bar.

Manufactured from pocketed billet aluminum 6061-T6, these arms measure 1 inch wide by 1 3/4 inches tall and come anodized in red for enhanced durability. They feature a 1 1/4"-48 spline, a link hole positioned 12 inches from the sway bar centerline to the end link hole, and a drop link heim spacer width of 1.50 inches. The arms also include a 1/2-inch link bolt hole and can be drilled to accommodate two additional link holes if needed.
