Sway Bar Arm

https://www.x-sway.com/web/image/product.template/11164/image_1920?unique=536b77a

SKU 4-125

Categories: Off-Road, Sway Bars

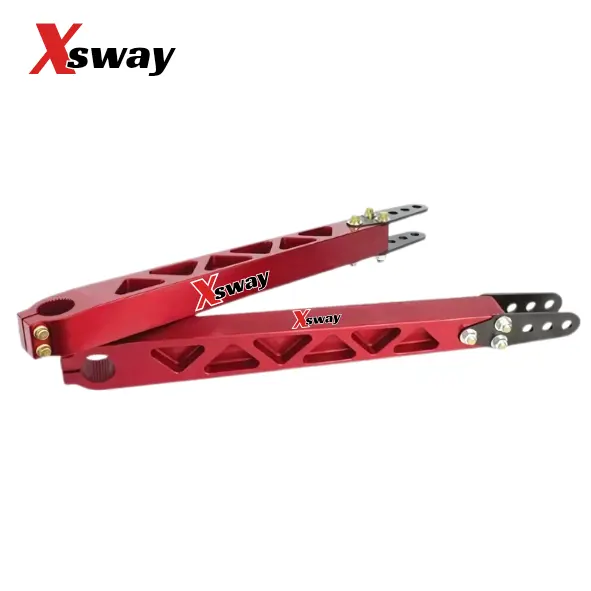

Pocketed billet aluminum sway bars arms designed for custom street and off-road applications. 1 1/4-48 spline.


Sway-A-Way’s sway bar arms are an excellent choice for those building a custom sway bar setup. Precision CNC machined from solid billet 6061-T6 aluminum, these durable arms are designed for both street and off-road sway bar applications.

They are engineered to pair seamlessly with our custom street and off-road sway bars and can be purchased at a discount as part of our Off-Road Sway Bar Kit, which includes the arms, a custom sway bar, and custom drop links. This arm is specifically designed to fit our 4-1001 sway bar.

Manufactured from pocketed billet aluminum 6061-T6, these arms measure 1 inch wide by 1 3/4 inches tall and come anodized in red for enhanced durability. They feature a 1 1/4"-48 spline, a link hole positioned 12 inches from the sway bar centerline to the end link hole, and a drop link heim spacer width of 1.50 inches. The arms also include a 1/2-inch link bolt hole and can be drilled to accommodate two additional link holes if needed.

189.00 189.0 USD 189.00

189.00

Not Available For Sale

This combination does not exist.

Sway Bar Arm
