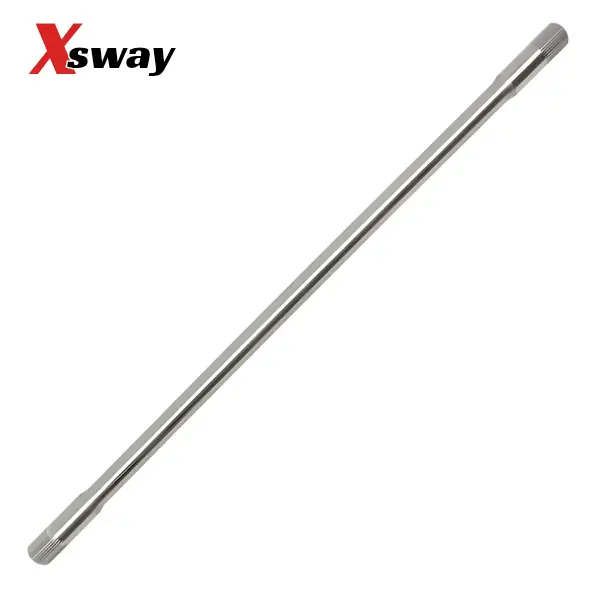

Sway Bar, 1 1/4-48 spline, custom length and diameter

SKU 4-1001

Categories: Off-Road, Sway Bars

Sway-A-Way’s custom sway bar built to the customers exact length and diameter specifications. Overall bar length is the distance between the outside faces of your mounts + 1.125″ per side. The additional 1.125″ per side is broken down into 1.00″ for spline length, 0.125″ for bushing flange, and 0.125″ for bushing and arm spacing.

Diameter

Built to customer specification.

Length

Built to customer specification.

Sway-A-Way’s custom off-road sway bar is a precision-machined, built-to-order component designed for off-road applications. Each sway bar is crafted from solid, heat-treated 4140 steel and tailored to the customer's exact specifications for diameter and length. With nearly 50 years of expertise, Sway-A-Way provides these high-quality sway bars at some of the most competitive prices in the industry. For applications requiring more than 12 inches of wheel travel, please contact us for assistance. This custom sway bar is designed to be used with our sway bar arm, PN 4-125, or collar, PN 9048, for custom welded arms. It is manufactured from solid 4140 steel, heat-treated for durability, and features a 1 1/4"-48 spline. Customers can request custom lengths and diameters, with options available for any diameter up to 1.25 inches.
