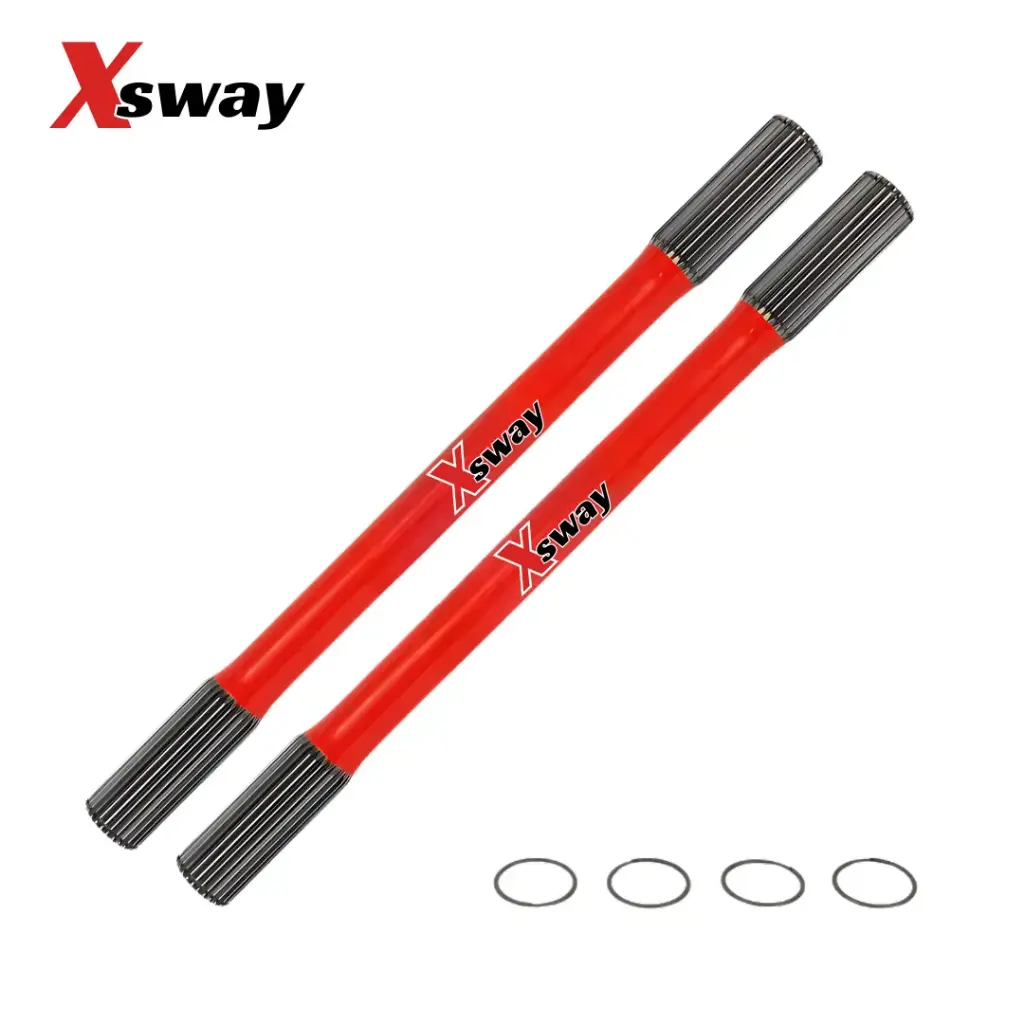

Axle Set - Custom Porsche 934 (33 Spline W/ 1/2 Dome Ends) - 27" Long
SKU 32727
Category: Porsche 934 Custom Axles (1/2 Dome Ends)
The 32727 is an elite, extended-length drivetrain solution engineered for high-horsepower Porsche 934 racing platforms, long-travel off-road race cars, and extreme custom builds utilizing 934-style CV joints. Stepping up from standard platforms, these axles feature an oversized 33-spline profile combined with a specialized 1/2 dome end design. At a substantial 27" in length, this axle set is meticulously engineered to provide maximum suspension articulation, exceptional torque transfer, and flawless durability under violent racing conditions.
Performance & Fitment
Application: Custom Porsche 934 CV joint assemblies, vintage Group 4 race builds, and high-travel mid-engine buggies.
Length: 27″ (Overall tip-to-tip).
Spline Count: 33 Teeth. This oversized spline profile delivers a massive increase in shear strength and surface contact area compared to standard 28-spline 930 components, preventing twisting or stripping at the CV interface.
End Design: 1/2 Dome Ends. The tips of the axles are precision-machined into a smooth, semi-spherical dome. This specialized geometry prevents the axle tips from catching, binding, or gouging the inside of the CV joint end caps during extreme high-angle suspension travel and high-speed plunge cycles.
Design: Solid Axle Profile. Maximizes material density to act as a robust torsional spring capable of handling immense torque loads.
Premium Construction
Material: High-Grade Alloy Steel. Forged from premium, aerospace-grade racing steel alloys to guarantee maximum tensile strength and superior fatigue life.
Precision Machining: CNC-machined to exact motorsports tolerances. The 33 splines are precision-cut to eliminate back-lash and guarantee smooth, uniform power distribution across the CV star faces.
Advanced Heat Treatment: Meticulously through-hardened and tempered to optimize the core elasticity of the steel, allowing the axle to twist slightly under extreme shock loads and return to its original shape without permanently bending or snapping.
🏁 Racing Drivetrain & Installation Notes
Deploying an ultra-long 27" 33-spline axle with dome ends requires meticulous setup to avoid catastrophic drivetrain failure:
❌ Why the 1/2 Dome Matters: In long-travel suspension setups, the axle constantly plunges in and out of the CV joint. Standard flat-cut axle ends can slam hard into the CV grease caps at full compression, cracking the caps or fracturing the axle tip. The 1/2 dome design safely deflects off internal surfaces, smoothly navigating extreme suspension articulation.
❌ Critical Plunge & Cycle Check: You must mock up the drivetrain and cycle the suspension from full droop to full bump without the CV boots installed. Verify that the axle maintains at least 3/8" of lateral "plunge" (free play) at the absolute tightest point of the suspension arc. If the axle bottoms out completely, it will punch straight through your transaxle side-covers or crush the wheel bearings.
❌ High-Angle CV Compatibility: Ensure you are pairing these axles with high-performance, high-angle Porsche 934 CV joints. Running a premium 33-spline axle with a budget or worn CV cage creates an immediate weak link in your drivetrain.
❌ Extreme Pressure Lubrication: Always pack the 33-spline ends and the 1/2 dome tips with a premium, high-molybdenum (Moly) racing grease. Proper lubrication is mandatory to prevent spline galling or cold-welding under the extreme friction and heat of competition.
❌ Micro-Fracture Maintenance: In professional racing environments, it is recommended to pull these axles periodically for a dye-penetrant or Magnaflux inspection. This ensures you catch any surface stress cracks before they lead to a catastrophic track failure.
What’s Included
Custom axle set for Porsche 934
Suitable for custom fitments
Warranty
Backed by a 1-year warranty for peace of mind.
