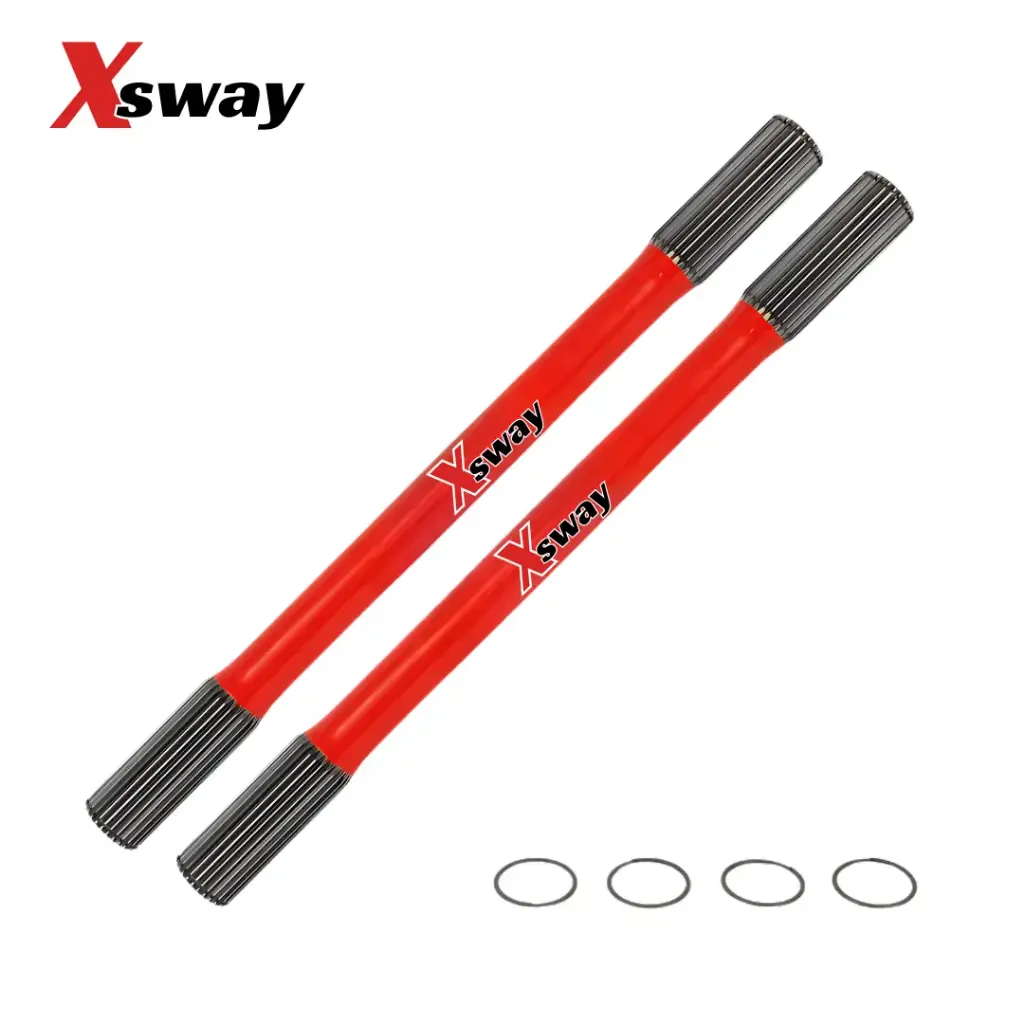

Axle Set - Custom Porsche 934 (33 Spline)
SKU 32700
Performance & Fitment
Application: Porsche 934 race cars, specialized vintage Group 4 restorations, and custom high-horsepower transaxle builds.
Spline Count: 33 Teeth. This oversized spline profile provides a massive increase in surface area and shear strength over standard 28-spline 930 components, making it ideal for high-boost racing applications.
Design: Solid Axle Profile. Engineered to serve as a robust mechanical link that handles intense side-loading and violent acceleration.
Compatibility: Designed to integrate with heavy-duty Porsche 934-style CV joints.
Material: High-Strength Solid Alloy Steel. Forged from premium racing-grade steel alloys to ensure exceptional tensile strength, minimal deflection, and maximum fatigue resistance under grueling race conditions.
Precision Machining: CNC-machined to exact motorsports tolerances. The 33-spline ends are precision-cut to guarantee maximum face contact with the CV star, minimizing backlash and drivetrain "chatter."
Advanced Heat Treatment: Through-hardened and meticulously tempered to achieve the ultimate balance between surface hardness (to prevent spline wear) and core flexibility (to safely absorb drivetrain shock).
❌ Torque Absorption: Even with its heavy-duty solid profile, this alloy steel axle is engineered to provide a calculated amount of torsional flex. This slight twist absorbs the brutal shock-loading of hard gear changes and aggressive launches, protecting your expensive transaxle gears from shattering.
❌ Critical Suspension Cycle & Plunge Check: Prior to final track installation, completely remove the CV boots and cycle the rear suspension from full compression (bump) to full extension (droop). Verify that the axle maintains a minimum of 1/4" of "plunge" (clearance) at the absolute tightest point of the suspension arc. If the axle bottoms out, it will act as a battering ram, punching through CV caps or cracking the transaxle casing.
❌ High-Pressure Lubrication: Always coat the 33-spline ends with a premium, high-pressure Molybdenum (Moly) racing grease or high-grade anti-seize during assembly. This prevents the CV star from galling or "cold welding" to the axle due to the extreme heat and pressure generated during extended track sessions.
❌ Component Matching: To maximize the benefits of the 32700 series, ensure your CV joints, internal cages, and drive flanges are upgraded to match the 33-spline requirement. Running premium axles with sub-par or worn CV stars will create a weak link that compromises the entire drivetrain.
- ❌ Micro-Fracture Inspection: In professional racing environments, it is highly recommended to periodically pull the axles for a dye-penetrant or Magnaflux inspection at the end of each season to catch any microscopic surface stress fractures before they can cause a catastrophic track failure.
Premium Construction
🏁 Racing Drivetrain & Installation Notes
Deploying a 33-spline Porsche 934 axle setup requires careful attention to drivetrain setup to ensure maximum reliability on the track:
What’s Included
- One pair of custom Porsche 934 axles
Warranty
Backed by a 1-year warranty for peace of mind.
3 in stock (can be backordered)
