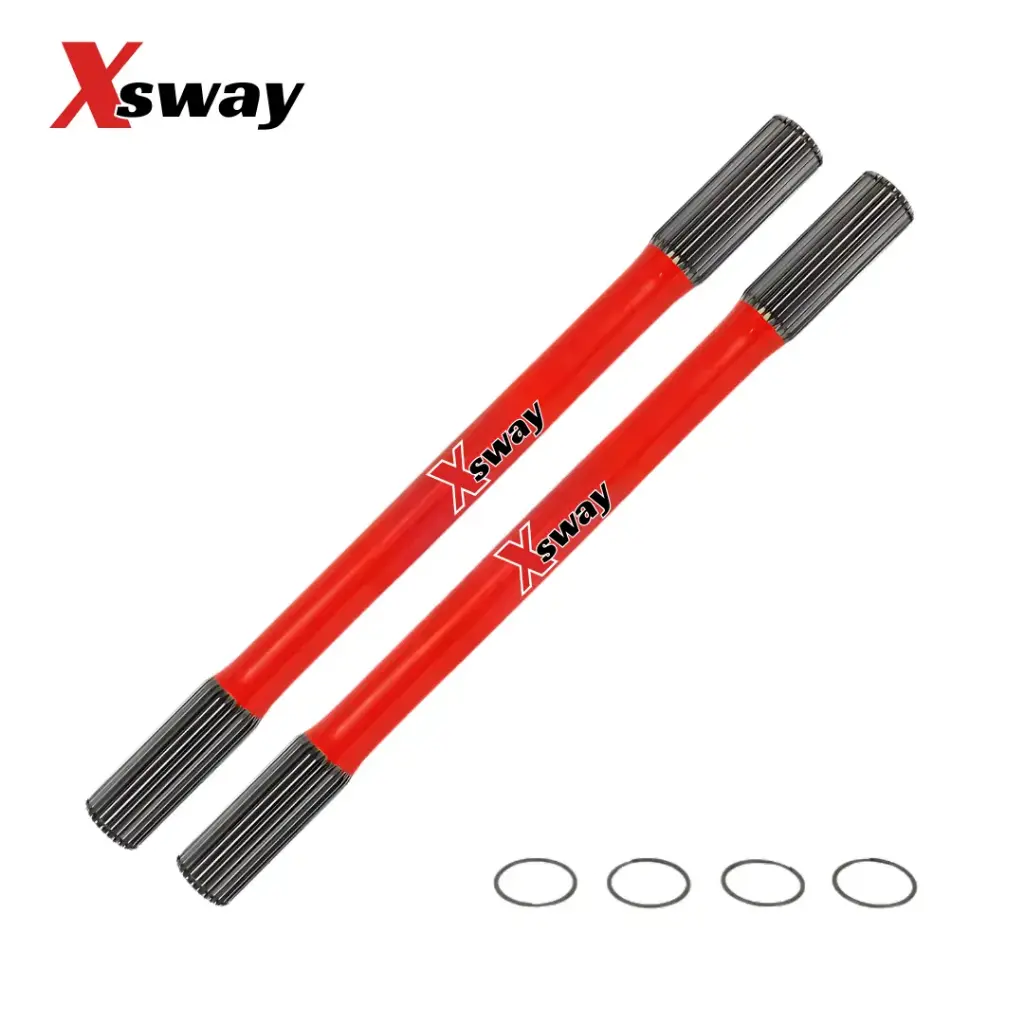

Axle Set - Custom Porsche 930 (28 Spline With Bearing Surface)
SKU 32500
Category: Porsche 930 Custom Axles (With Bearing Surface)
The 32500 series is a specialized drivetrain solution engineered for high-performance Porsche 930 applications that utilize a mid-shaft support or an integrated outboard bearing housing. Featuring a precision-machined bearing surface alongside standard 28-spline ends, this custom axle set is built to eliminate shaft whip and reduce deflection in extreme-travel or high-torque configurations. It is the premier choice for custom mid-engine race cars, specialized sand rails, and transaxle packages requiring an integrated support bearing.
Performance & Fitment
Application: Custom Porsche 930 CV joint (108mm) assemblies.
Spline Count: 28 Teeth. The standard for high-performance 930 drivetrains, providing maximum surface contact and shear strength.
Special Feature: Integrated Bearing Surface. This axle features a dedicated, smooth-ground journal designed to press or slip into a support bearing. This bearing stabilizes the center of long axles or isolates the transaxle from extreme lateral suspension forces.
Design: Solid construction from premium raw materials, engineered to handle severe torsional loads without structural deformation.
Customization: Tailored to your exact dimensional specifications for length and bearing journal placement.
Premium Construction
Material: High-Grade Alloy Steel. Forged from premium racing-grade steel alloys (such as 4340 or 300M) to deliver exceptional tensile strength and optimal fatigue resistance.
Precision Machining: CNC-machined to strict tolerances. The bearing journal is ground to a mirror finish to ensure a flawless interface with your support bearings, preventing friction heat and shaft wear.
Heat Treatment: Advanced thermal processing hardens the splines and bearing surface to resist wear while maintaining core ductility so the axle can flex safely under shock loads.
⚙️ Drivetrain Tech & Installation Notes
Axles with integrated bearing surfaces require distinct assembly and maintenance protocols:
❌ Bearing Alignment is Critical: The support bearing housing must be perfectly concentric and aligned with the transaxle output and wheel hub. Any misalignment will load the bearing surface unevenly, leading to rapid bearing failure, excessive heat, and potential axle snapping.
❌ Press-Fit vs. Slip-Fit Verification: When placing a custom order, verify whether your support bearing requires a press-fit or a slip-fit tolerance on the journal. Installing a slip-fit bearing on a press-fit journal will cause the inner race to spin, destroying the axle shaft.
❌ Critical Plunge Check: Even with a localized bearing surface, you must cycle the suspension through its full range of motion. Ensure the axle has sufficient "plunge" space within the CV joints so it does not bottom out and push against the support bearing structure.
❌ Lubrication: The 28-spline ends require high-pressure Molybdenum (Moly) racing grease. Ensure the bearing surface itself is lubricated according to the specifications of the bearing unit being used (greased or sealed).
❌ Regular Inspection: Periodically inspect the bearing surface journal for signs of scoring, galling, or discoloration from heat. If the surface shows visible damage, check the support bearing for failure or alignment issues immediately.
What’s Included
Custom axle set for Porsche 930
Suitable for custom fitments
Warranty
Backed by a 1-year warranty for peace of mind.
