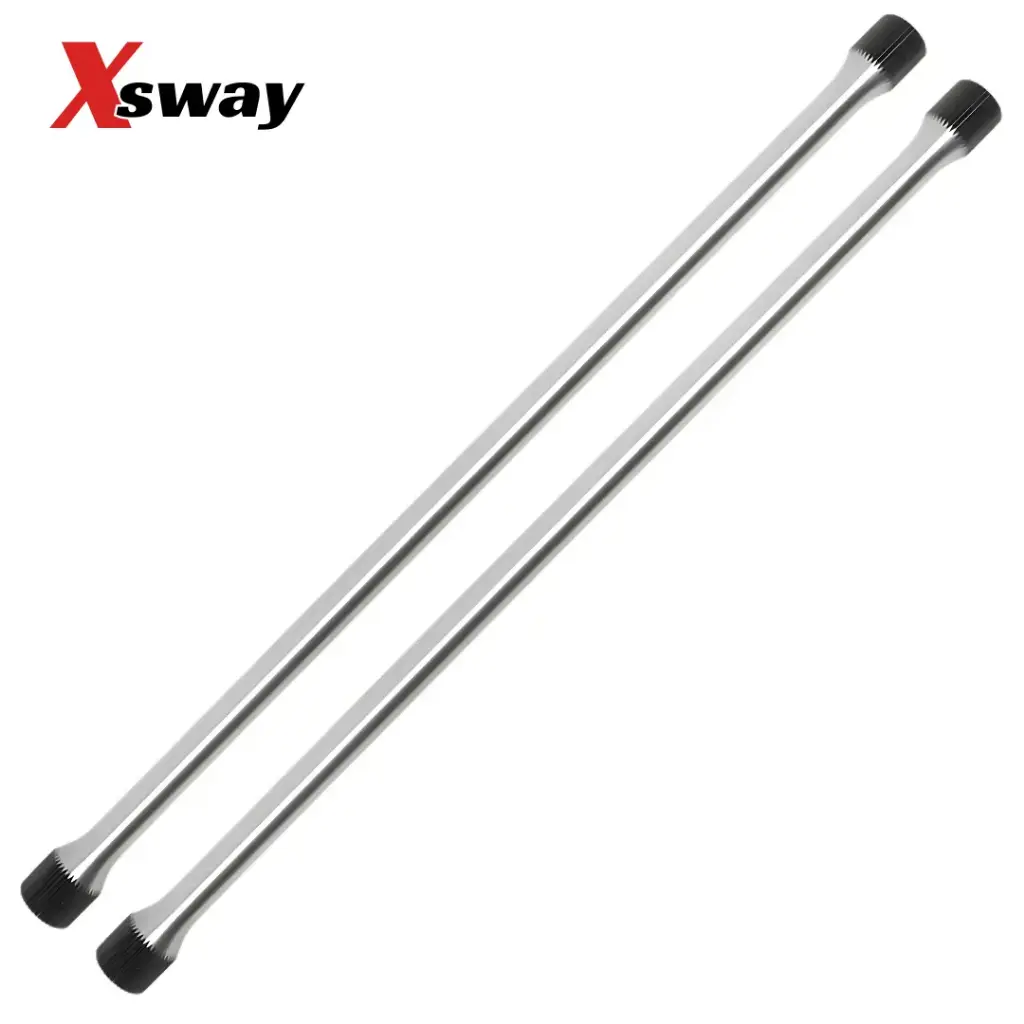

Axle Set - Porsche 930 - 300M (24")
SKU 32425
Performance & Fitment
Application: High-performance Porsche 930 CV joint assemblies.
Length: 24" (Overall tip-to-tip).
Spline Count: 28 Teeth (High-torque racing standard).
Spline Length: 3".
Floating Design: Featuring a shoulderless spline, this design allows the CV joint to "float" or slide across the 3" spline area. This is a critical feature for maximum-travel cars, as it prevents the axle from side-loading or binding the CV cage during massive suspension cycles, drastically reducing the risk of cage failure.
Torque Capacity: Specifically built to handle 1,000+ HP turbo applications and the violent shock loads of high-speed desert racing.
Material: 300M Aircraft-Grade Steel. This premium alloy provides the highest tensile strength in the industry while maintaining the ductility needed to survive extreme torsional twisting under load.
Precision Manufacturing: Centerless ground to a mirror finish. This eliminates microscopic surface imperfections that act as "stress risers," ensuring the axle can flex like a torsion spring without snapping.
Heat Treatment: Advanced through-hardening optimizes the axle for extreme durability while maintaining the flexibility required for torsional load soaking.
Finish: Heavy-duty powder coating protects the shaft from rock chips, roost, and corrosion.
Optimized Splines: The spline diameters are maximized to increase face contact with the CV star. This tighter tolerance reduces "chatter" and backlash, significantly extending the life of your CV joints.
❌ Floating Spline Advantage: In an extreme 20"+ suspension travel setup, the distance between the transaxle and the hub changes significantly. The shoulderless 3" spline allows the axle to slide internally, keeping the CV balls centered in the cage and preventing the axle from "punching out" the CV end cap.
❌ Critical Plunge Check: You must cycle the suspension from full droop to full bump without the CV boots attached. Verify that the axle has at least 3/8" of "plunge" (free play) at the tightest point of the arc. If the axle bottoms out, it will destroy your transaxle side-covers and bearings instantly.
❌ Lubrication: Use a high-molybdenum (Moly) racing grease. Because the CV star "floats" on the spline, high-pressure lubrication is mandatory to prevent spline galling.
❌ CV Joint Selection: To match the strength of 300M steel, always use high-angle 930 CV joints with upgraded chromoly or 300M cages. Standard OEM cages will quickly fail under these geometry demands.
- ❌ Directional Memory: For professional racing, mark these axles "Left" and "Right" after their first heat cycle. Reversing the rotation of a 300M axle that has already taken a torsional set can lead to premature stress fractures.
Premium Construction
⚙️ Drivetrain Tech & Installation Notes
When installing a 24" axle in an ultra-wide, high-travel chassis, precision setup is the difference between victory and a DNF:
What’s Included
- One pair of 300M Porsche 930 axles
- Spirol Lock circlips for securing CV joints
Warranty
Backed by a 1-year warranty for peace of mind.
