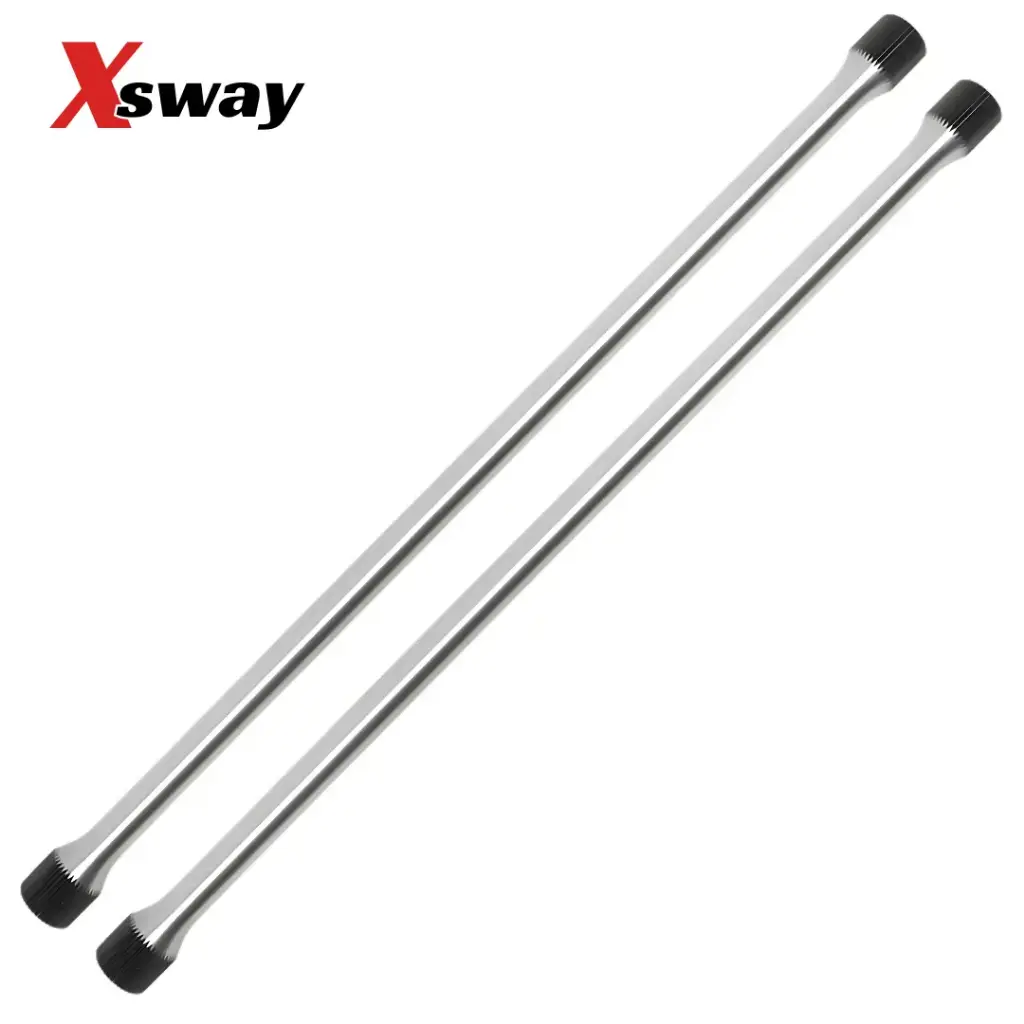

Axle Set - Porsche 930 - 300M, 16 3l4"
Category: Porsche 930 Axles (300M Steel)
The 32416-7 is the ultimate drivetrain upgrade for Porsche 930-based systems, specifically engineered for high-horsepower racing and heavy-duty off-road use. Forged from 300M aircraft-grade steel, these axles are approximately 30% stronger than standard chromoly options. This specific 16 3/4" length is a staple in the off-road industry, frequently utilized in long-travel sand rails and mid-engine race cars running 930 CV joints.
Performance & Fitment
Application: High-performance Porsche 930 CV joint assemblies.
Length: 16 3/4" (Tip-to-tip).
Spline Count: 28 Teeth (Industry standard for 930 CV stars).
Spline Diameter: 1.220".
Spline Length: 3" (Allows for significant "plunge" or movement within the CV joint during suspension travel).
Design: Solid Construction. These bars are designed to handle the violent shock loads of desert racing and high-boost launches without the risk of shearing.
Premium Construction
Material: 300M Steel. This aerospace-grade alloy is renowned for its high tensile strength and superior ductility. It allows the axle to twist under extreme load and return to its original shape, acting as a torsion spring to protect your transaxle gears.
Heat Treatment: Precision through-hardened to optimize the balance between surface hardness and core flexibility.
Centerless Ground: The shaft is ground to a mirror finish to eliminate all surface imperfections. This is critical because even a microscopic scratch can act as a "stress riser," leading to a snap under high torque.
Finish: Powder-coated for maximum corrosion resistance against the elements.
⚙️ Drivetrain Tech & Installation Notes
To ensure the longevity of your 300M axles, follow these professional setup guidelines:
❌ Calculating "Plunge": This 16 3/4" axle must be verified against your suspension cycle. Ensure that at full "droop" and full "bump," the axle has at least 1/4" of clearance inside the CV joint. If the axle bottoms out, it will punch through the CV cap or shatter the transaxle side-cover.
❌ CV Joint Compatibility: These axles are designed for high-angle 108mm 930 CV joints. For maximum strength, it is recommended to pair these with 300M or chromoly CV cages to match the strength of the axle.
❌ Spline Lubrication: Always apply a liberal amount of high-pressure molybdenum (moly) grease or anti-seize to the 28-tooth splines. This prevents the CV star from "cold welding" to the axle over time due to heat and pressure.
❌ Directional Sets: While 300M is incredibly resilient, in professional racing, it is best practice to mark these axles "Left" and "Right" once they have been used. Running an axle in the opposite direction after it has "taken a set" can shorten its fatigue life.
❌ Inspection: Periodically check the powder coating. If you see "spiraling" in the finish, it indicates the axle has experienced significant torsional twist. While 300M is designed for this, extreme spiraling is a sign that you should inspect for spline deformation.
What’s Included
Pair of high-performance axles for Porsche 930 CV
Spirol Lock circlips for secure CV joint fitment
Warranty
Backed by a 1-year warranty for peace of mind.
