Axle Set - Porsche 930 - 300M

SKU 32416

Categories: Axles, Porsche, Porsche 930

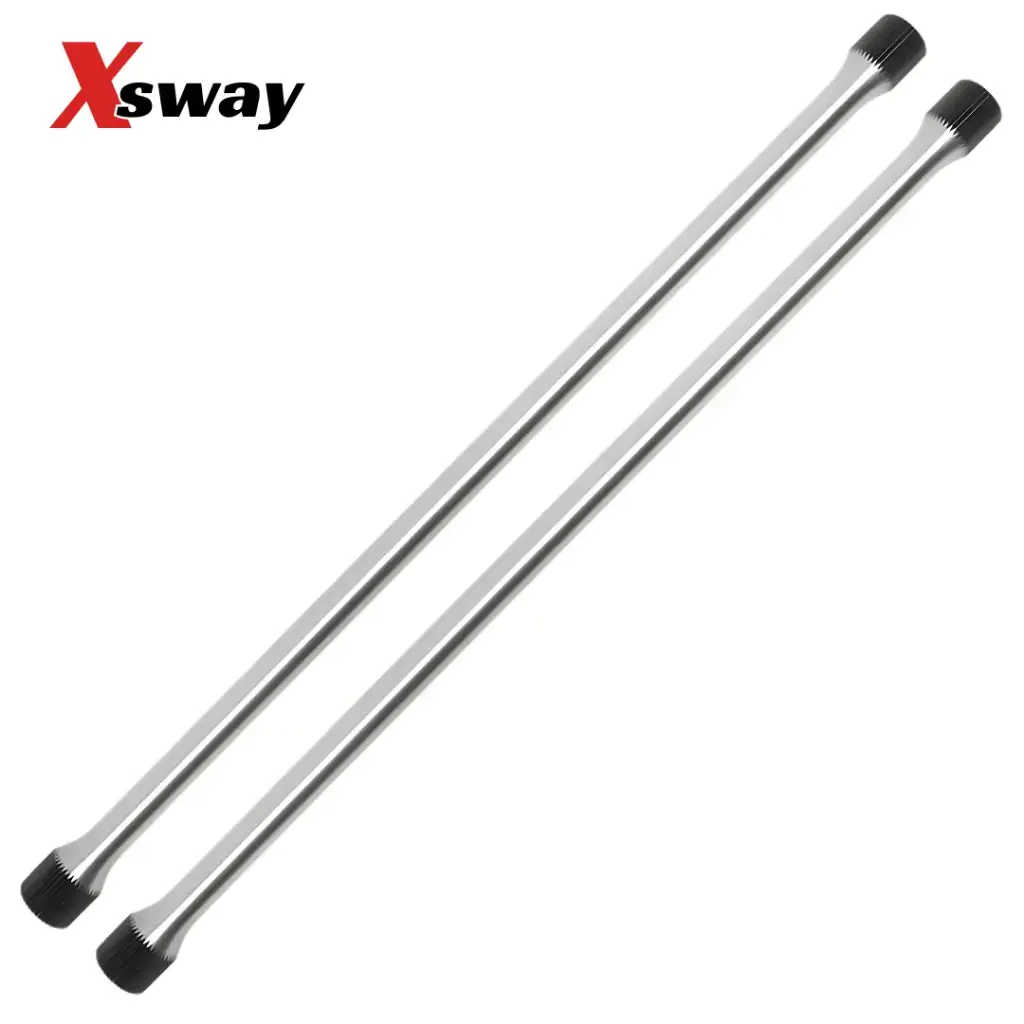

Axle Set – Porsche 930  – 300 M Steel

Length: 16 9l16"

Axle Set – For the Porsche 930 CV – 300M Steel

Sway-A-Way Porsche 930 are designed with high performance in mind. These axles are made from aircraft grade 300 M and are 30% stronger than our standard axles. They are used for racing and high torque applications. The spline diameters are maximized to increase face contact area, thus reducing wear between the CV center and the axle. The 28 tooth spline outside diameter is 1.220 and fits the Porsche 930 CV joints. The spline is 3″ long eliminating the inboard shoulder so that the CV “floats” on the axle helping to prevent cage breakage. Spirol Lock circlips are included for the outboard end of the axles to keep the CV on.

- Manufactured from solid alloy steel

- Heat treated for increased strength

- Centerless ground for consistent outside diameter and rate

- Powder coated to resist corrosion
