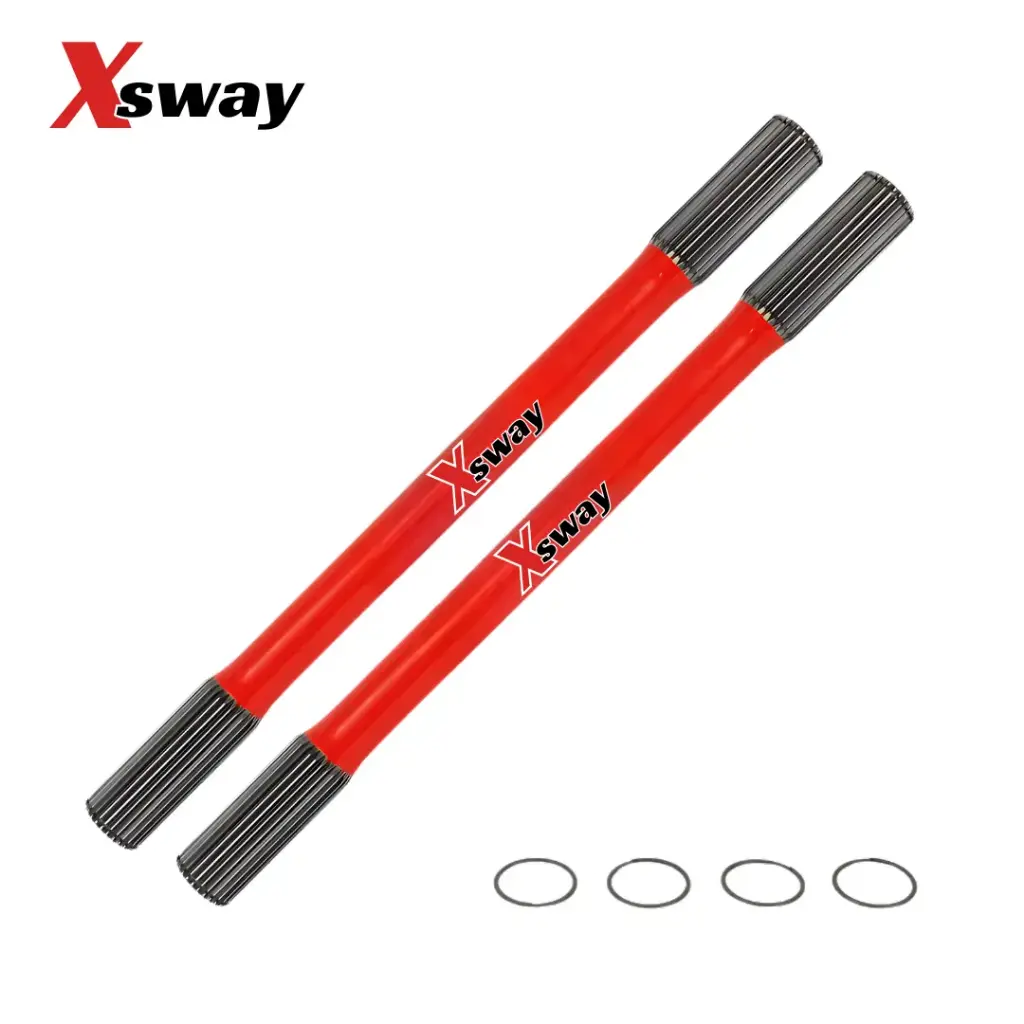

Axle Set - Custom Porsche 930 With Bubble Middle (SOLID)
Category: Porsche 930 Custom Axles (Bubble Middle)
Engineered for elite racing and high-horsepower applications, the 32402 series is a specialized version of the legendary Porsche 930 axle. Featuring the distinct "Bubble Middle" (tapered) design, these axles are specifically crafted for vehicles that experience extreme shock loads, such as long-travel off-roaders and high-boost drag cars. This design allows the axle to act as a torsional spring, protecting your expensive transaxle and CV joints from catastrophic failure.
Performance & Fitment
Application: High-performance Porsche 930 factory upgrades and custom mid-engine race builds.
Special Feature: Bubble Middle Design. Unlike a straight-wall axle, the "bubble" design features a larger diameter at the splines that tapers down to a thinner center section. This allows the axle to twist slightly under heavy torque—effectively acting as a "mechanical fuse" or shock absorber for your drivetrain.
Construction: Solid construction using premium metallurgy, eliminating the weak points found in hollow or OEM-style cast shafts.
Customization: Available in custom lengths and diameters to perfectly match your chassis width and horsepower levels.
Compatibility: Designed for use with heavy-duty 108mm 930-style CV joints.
Premium Construction
Material: High-Strength Alloy Steel. Forged from aerospace-grade alloys (typically 300M), providing the highest possible tensile strength while maintaining the ductility required for torsional twisting.
Precision Manufacturing: CNC-machined to exacting tolerances to ensure a perfect 28-spline (standard) fitment, preventing vibration and premature spline wear.
Heat Treatment: Advanced through-hardening optimizes the steel's "memory," ensuring the axle returns to its original state after twisting without taking a permanent set or becoming brittle.
Stress Relief: The tapered transitions are centerless ground to a mirror finish to eliminate stress risers, which are the primary cause of axle snaps in high-performance racing.
⚙️ Drivetrain Tech & Installation Notes
The "Bubble Middle" axle is a sophisticated tuning tool. To ensure maximum reliability:
❌ Why the Taper Matters: On a hard launch or a rough landing, the center section of this axle absorbs the energy that would otherwise shatter your ring and pinion or shear the CV stars. By "soaking up" the shock, it extends the life of your entire drivetrain.
❌ Calculating Plunge: For custom long-travel applications, ensure your axle length is calculated at the "tightest" point of the suspension arc. If the axle is too long, the bubble design will not prevent it from bottoming out and punch out your transaxle side-covers.
❌ CV Joint Synergy: Pair these axles with high-quality chromoly CV cages. A "bubble" axle can handle more torque than a standard axle, often shifting the "weak link" to the CV joint if it is not properly maintained or upgraded.
❌ Directional Marking: In some high-end racing applications, axles are "indexed" or run in a specific direction once they have taken a set. Always check for manufacturer markings regarding rotation.
❌ Maintenance: Periodically remove the CV boots and inspect the splines for "twisting." If the splines show signs of permanent spiraling, the axle has reached its yield point and should be replaced before it snaps.
What’s Included
Pair of custom Porsche 930 axles with bubble middle design
Warranty
Backed by a 1-year warranty for peace of mind.
