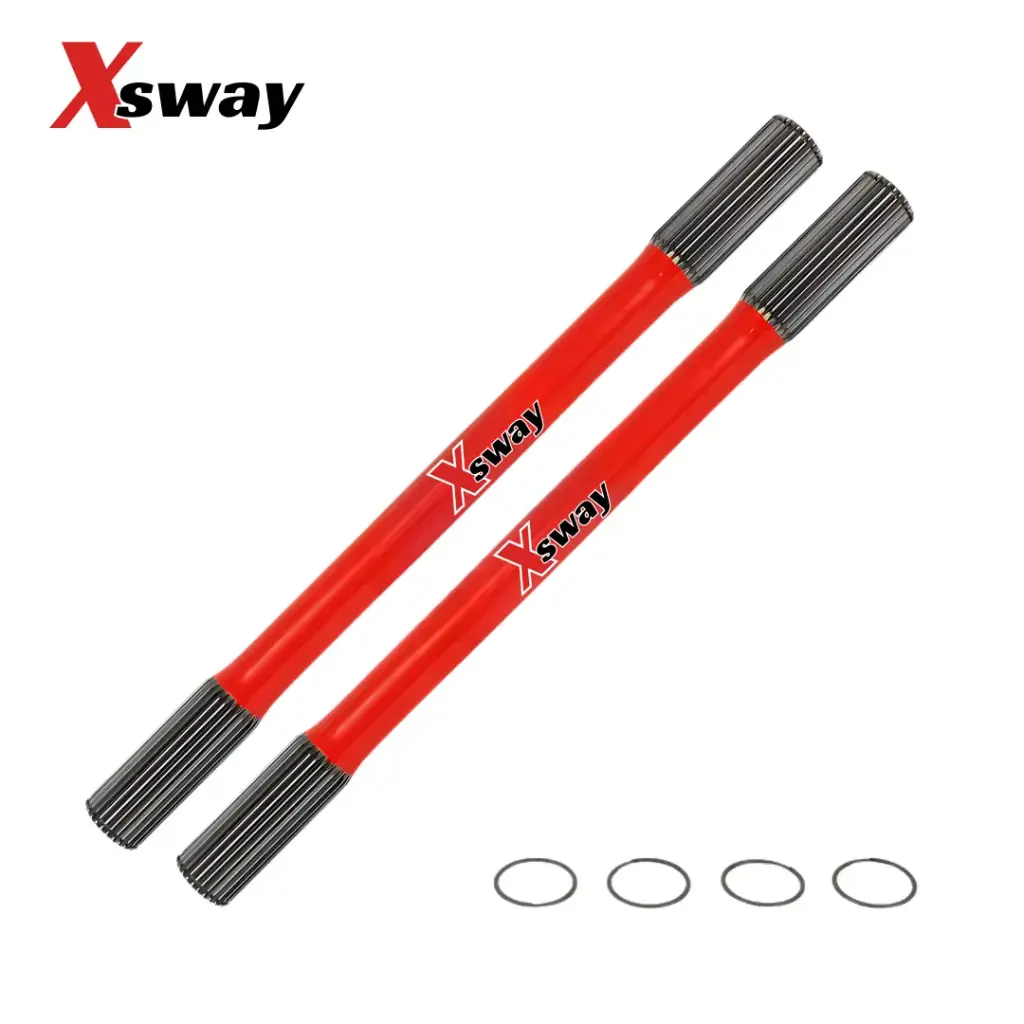

Axle Set - Porsche 930 CV (27")

• • Application: Porsche 930 CV Joints (108mm)

  • Overall Length: 27"

  • Spline Count: 28-tooth

  • Outer Diameter: 1.220" (Spline)

  • Design Feature: Floating CV Design, which allows the CV joint to travel along the spline section. This significantly reduces lateral stress and prevents catastrophic cage failure during the massive suspension travel required by elite off-road chassis.

  • Geometry: At 27", this is an ultra-long axle designed for custom "wide-body" desert racers, high-horsepower sand rails, and long-travel off-road buggies.

Premium Construction

• • Material: Solid high-strength alloy steel, selected for its superior torsional resilience and impact resistance.

  • Heat Treatment: Through-hardened to achieve maximum durability, allowing the axle to absorb torque spikes and snap back to its original state without permanent twisting.

  • Manufacturing: Centerless ground for a perfectly consistent outer diameter, ensuring the CV joint slides smoothly and the axle remains balanced at high RPM.

  • Finish: Powder-coated to provide a robust barrier against corrosion, moisture, and abrasive sand or mud.

⚠️ Critical Fitment Exceptions

Even if you are utilizing a Porsche 930-style drivetrain, ensure your setup does not fall under these exceptions:

• ❌ Standard VW Components: This axle features the 28-tooth Porsche spline configuration. It is not compatible with standard 33-spline Volkswagen Type 1 (Bug/Ghia) or Type 2 (Bus) CV joints.

• ❌ Critical Length Verification: Due to the extreme 27" length, you must accurately measure your flange-to-flange distance when the suspension is at its "tightest" point (axle perfectly horizontal). If the axle is too long for the chassis width, it will act as a solid punch, shattering the CV cages or destroying the transaxle housing.

• ❌ Spline Diameter Verification: This axle is designed for a 1.220" outer diameter spline. Always verify that your aftermarket CV joint internal "stars" match this specific diameter to ensure the "floating" action functions correctly and prevents internal drivetrain stress.

What’s Included

• One pair of Porsche 930 CV axles

Warranty

Backed by a 1-year warranty for peace of mind.
