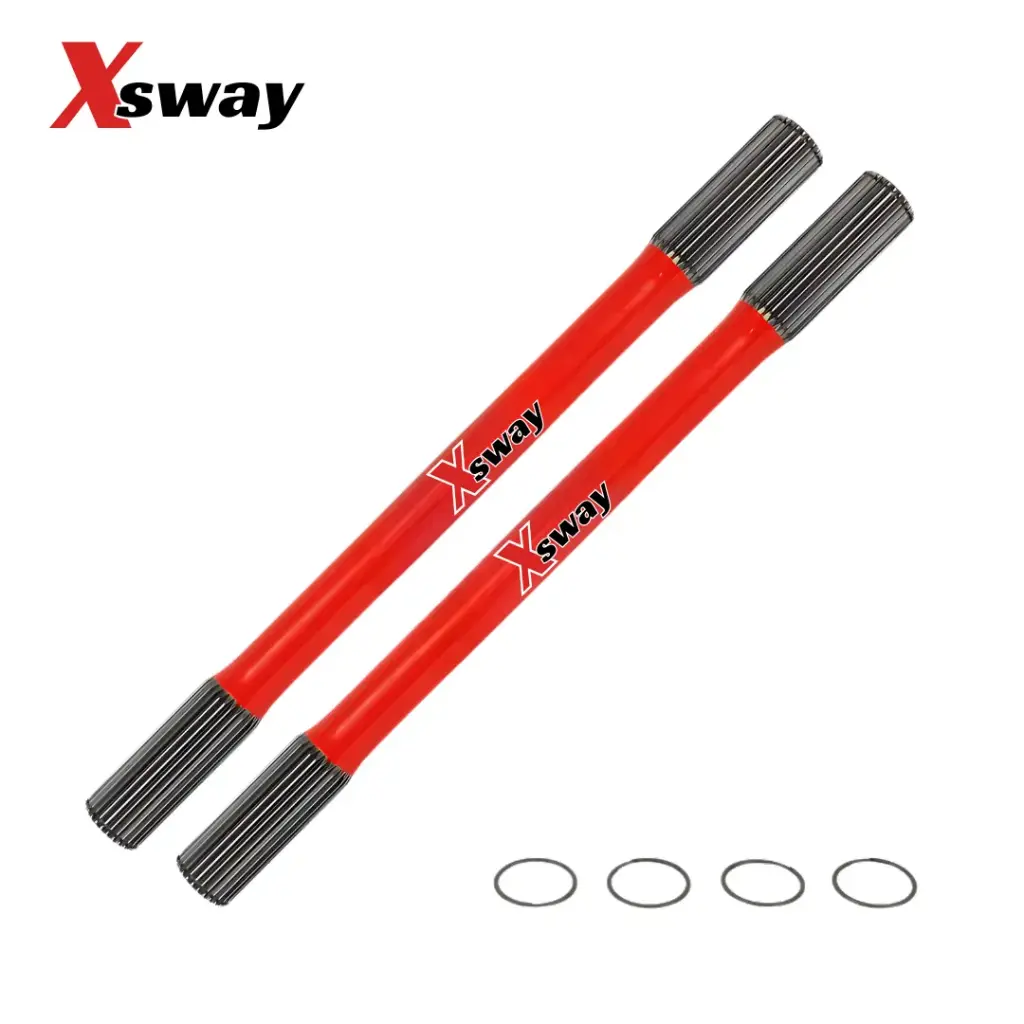

Axle Set - Porsche 930 CV (26")

https://www.x-sway.com/web/image/product.template/11067/image_1920?unique=480a547
SKU 2426

Category: Porsche 930 Performance Axles

Designed for elite high-performance applications, these 26" Porsche 930 CV axles offer optimized spline diameters to maximize face contact and minimize wear. Built to withstand massive torque and grueling racing conditions, they provide unmatched durability and reliability under extreme suspension loads.

Performance & Fitment

    • Application: Porsche 930 CV Joints (108mm)

    • Overall Length: 26"

    • Spline Count: 28-tooth

    • Outer Diameter: 1.220" (Spline)

    • Design Feature: Floating CV Design, engineered to allow the CV joint to travel freely along the spline. This minimizes lateral stress and prevents cage breakage during the massive suspension articulation found in wide-track off-road racing.

    • Geometry: At 26", this is one of the longest axles in the 930 series, specifically intended for custom "Super-Wide" desert racing chassis, high-end sand rails, and specialized long-travel buggies.

  • Premium Construction

    • Material: Solid alloy steel selected for its high torsional yield point and superior impact resistance.

    • Heat Treatment: Through-hardened to increase durability, allowing the shaft to flex under peak torque loads and return to center without bowing.

    • Manufacturing: Centerless ground for a perfectly precise and consistent outer diameter, ensuring smooth CV movement and a balanced rotation at high speeds.

    • Finish: Powder-coated for robust corrosion resistance against moisture, salt, and abrasive track debris.

  • ⚠️ Critical Fitment Exceptions

    Even if you are utilizing a Porsche 930-style drivetrain, ensure your setup does not fall under these exceptions:

  • ❌ Standard VW Splines: This axle utilizes the 28-tooth Porsche configuration. It is not compatible with standard 33-spline Volkswagen Type 1 (Bug) or Type 2 (Bus/091) CV joints.

  • ❌ Length Clearance: Due to the extreme 26" length, it is vital to measure your flange-to-flange distance when the suspension is at its narrowest point (axle horizontal). If the axle is too long for the track width, it will act as a solid punch and destroy the CV cages or the transaxle.

  • ❌ Spline Diameter Check: This shaft is designed for a 1.220" outer diameter spline. Always verify that your aftermarket CV joint internal "stars" match this specific diameter to ensure the "floating" action functions correctly and prevents internal CV stress.

What’s Included

  • One pair of Porsche 930 CV axles

Warranty

Backed by a 1-year warranty for peace of mind.
