Axle Set - Porsche 930 CV (L-25") 2425

SKU 2425

Categories: Axles, Porsche, Porsche 930

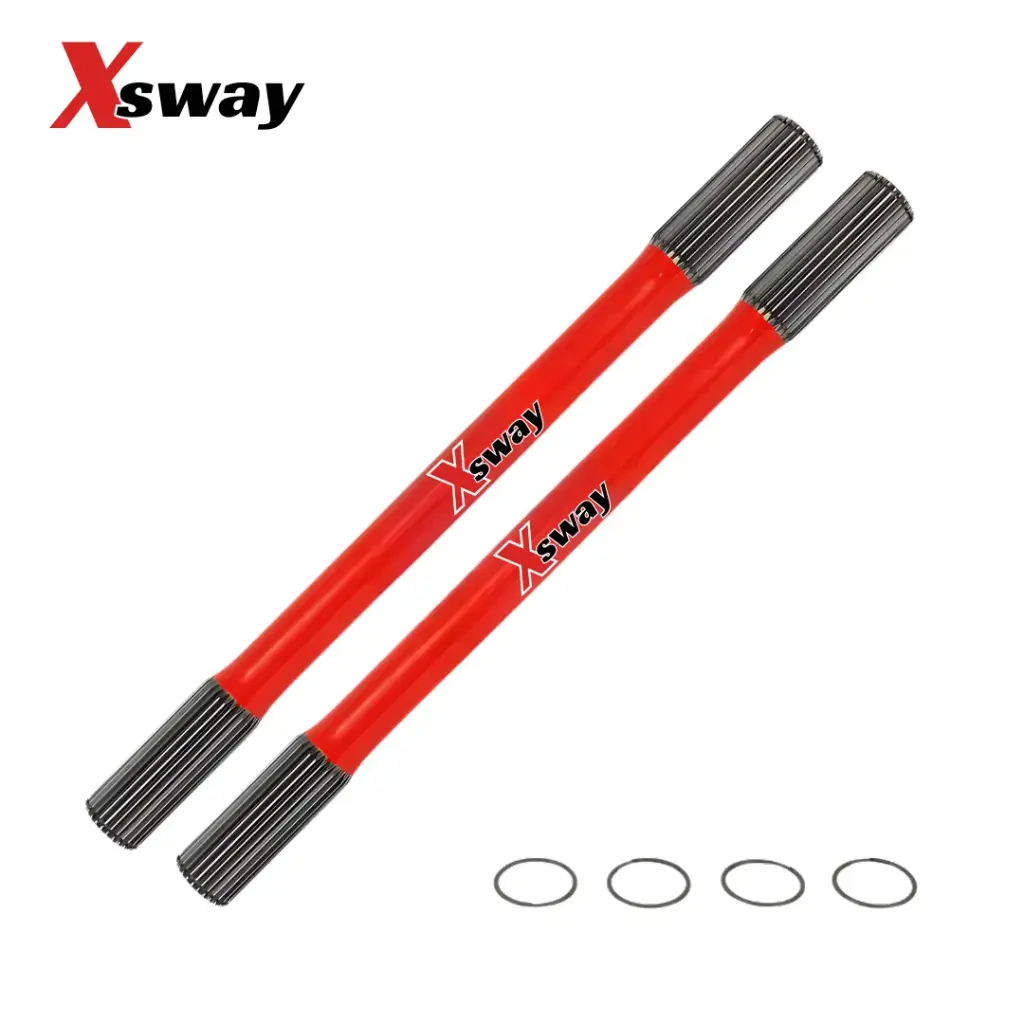

Axle Set – Porsche 930

Length:25"

Available on backorder

Sway-A-Way’s Porsche 930 axles are built for high-performance applications, featuring optimized spline diameters to maximize face contact and minimize wear between the CV center and the axle.

These axles are designed to fit Porsche 930 CV joints with a 28-tooth spline and an outer diameter of 1.220 inches. The 3-inch-long spline eliminates the inboard shoulder, allowing the CV to "float" on the axle, reducing stress and helping to prevent cage breakage under heavy loads.

Each axle includes Spirol Lock circlips on the outboard end to securely retain the CV joint. Note that part number 2413 features a 2-inch spline length.

-Manufactured from solid alloy steel

-Heat treated for increased strength

-Centerless ground for consistent outside diameter and rate
