Performance & Fitment

• • Application: Porsche 930 CV Joints (108mm)

  • Overall Length: 24"

  • Spline Count: 28-tooth

  • Outer Diameter: 1.220" (Spline)

  • Design Feature: Floating CV Design, allowing the CV joint to slide along the splines to accommodate suspension movement. This reduces lateral binding and prevents cage breakage during the massive travel ranges of modern racing chassis.

  • Geometry: Measuring a full 24", this is an "ultra-long" axle typically reserved for specialized long-travel trophy lites, wide-track sand rails, and custom desert racing vehicles.

Premium Construction

• • Material: Solid alloy steel for superior tensile strength and the ability to absorb harsh drivetrain shocks.

  • Heat Treatment: Through-hardened to increase durability and maintain torsional memory, allowing the shaft to flex under load and snap back without bowing.

  • Manufacturing: Centerless ground for a precision outer diameter, ensuring the CV joint moves smoothly along the shaft and the assembly remains balanced at high speeds.

  • Finish: Powder-coated to provide a thick, protective barrier against corrosion, moisture, and abrasive sand or mud.

⚠️ Critical Fitment Exceptions

Even if you are utilizing a 930-style drivetrain, ensure your setup does not fall under these exceptions:

• ❌ Standard VW Components: This axle features the 28-tooth Porsche spline. It is not compatible with standard 33-spline Volkswagen Type 1 (Bug) or Type 2 (Bus) CV joints.

• ❌ Length Clearance: At 24", this axle is significantly longer than standard. You must measure your flange-to-flange distance at the suspension's narrowest point (axle perfectly horizontal). If the axle is too long, it will act as a solid punch and destroy your CV cages or transaxle on the first bump.

• ❌ Spline Diameter Verification: This shaft is designed for a 1.220" outer diameter spline. Always verify that your aftermarket CV joint "stars" match this specific diameter; mismatched tolerances can lead to excessive play or an inability to utilize the "floating" feature.

What’s Included

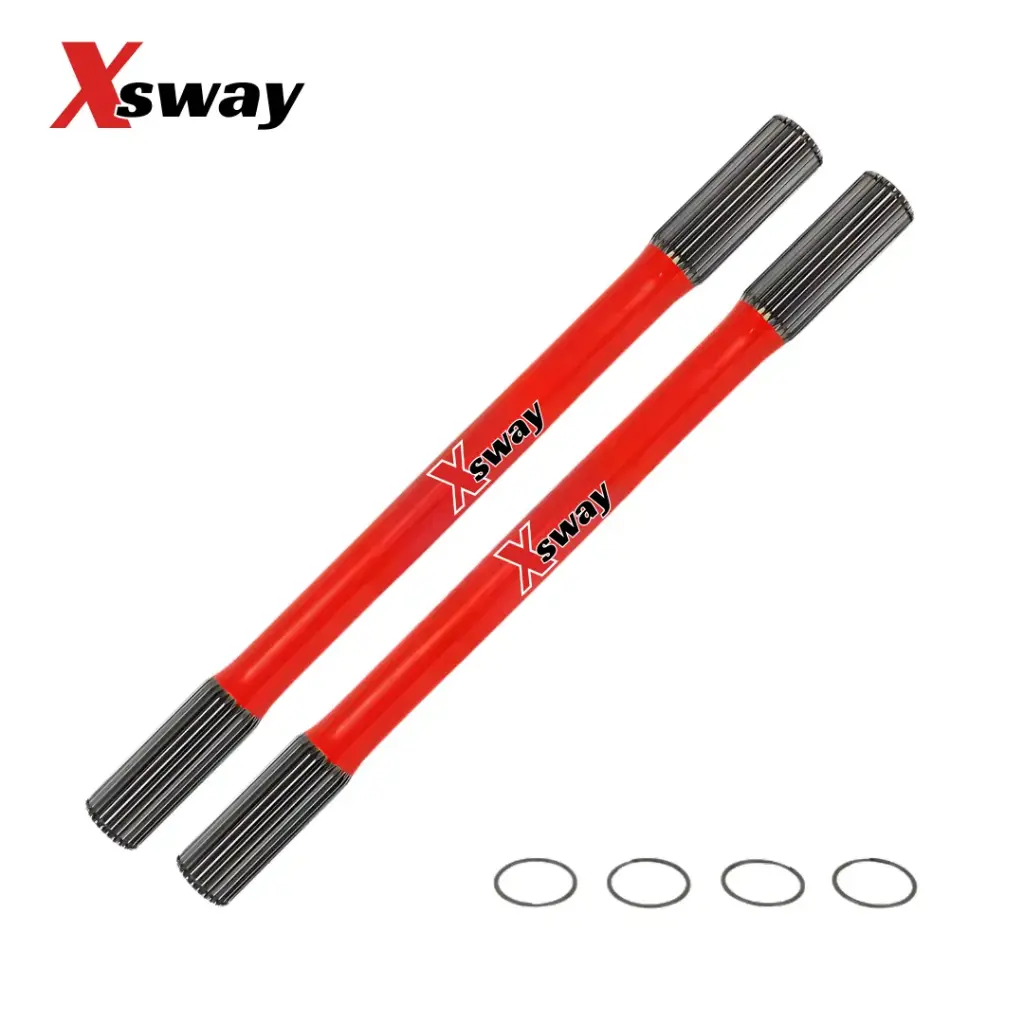

• One pair of Porsche 930 CV axles

Warranty

Backed by a 1-year warranty for peace of mind.
