Performance & Fitment

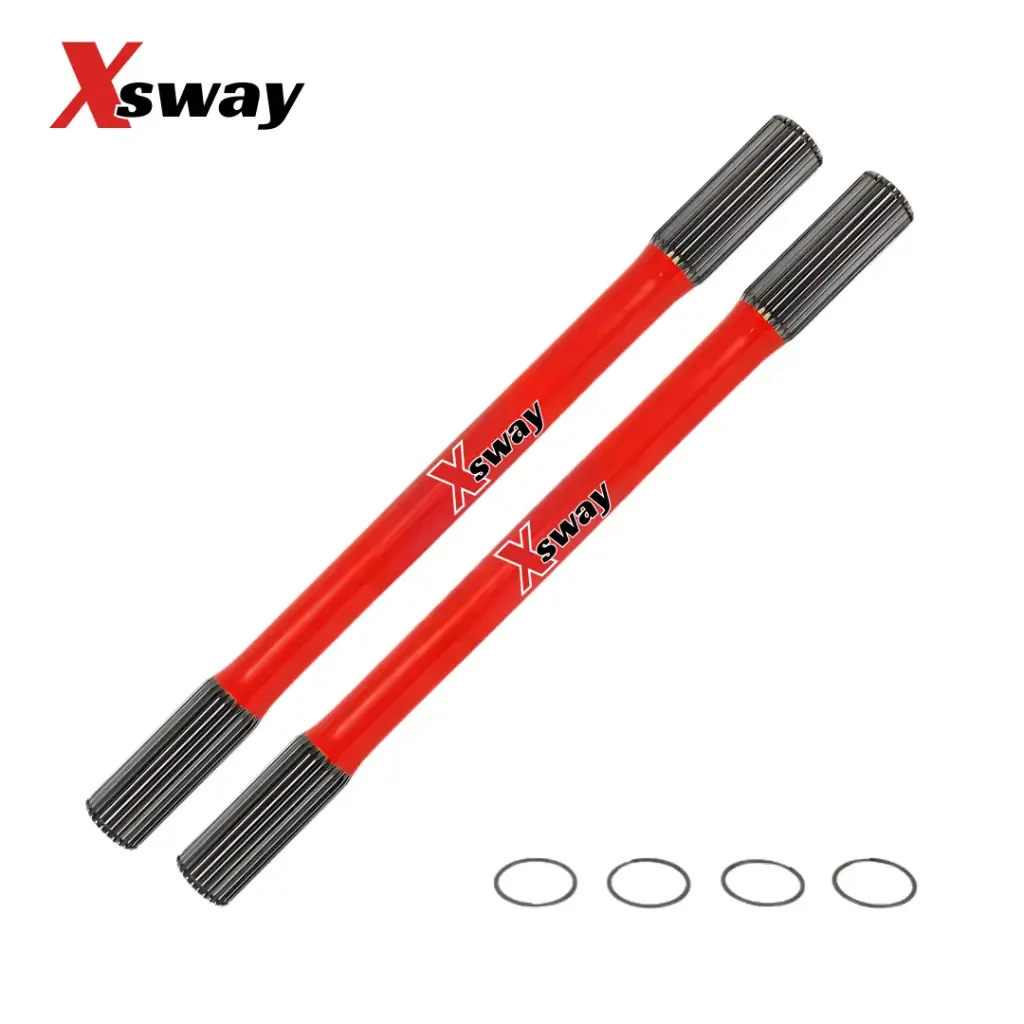

• • Application: Porsche 930 CV Joints (108mm)

  • Overall Length: 22.5"

  • Spline Count: 28-tooth

  • Outer Diameter: 1.220" (Spline)

  • Design Feature: Floating CV Design, engineered to allow the CV joint to travel freely along the spline. This minimizes lateral stress and prevents cage breakage during the massive suspension articulation typical of long-travel desert racers and sand rails.

  • Geometry: At 22.5", this is an ultra-long axle, perfect for custom wide-track chassis requiring maximum wheel travel.

Premium Construction

• • Material: Solid alloy steel for exceptional tensile strength and superior torsional resilience.

  • Heat Treatment: Through-hardened to enhance durability, allowing the shaft to absorb massive torque loads and return to center without bowing or permanent twisting.

  • Manufacturing: Centerless ground for a precision fitment and a perfectly concentric shaft to eliminate high-speed vibration.

  • Finish: Powder-coated for long-lasting corrosion resistance against moisture, sand, and abrasive track elements.

⚠️ Critical Fitment Exceptions

Even if you are utilizing a Porsche 930-style drivetrain, ensure your setup does not fall under these exceptions:

• ❌ Standard VW Components: This axle features the 28-tooth Porsche spline configuration. It is not compatible with standard 33-spline Volkswagen Type 1 (Bug/Ghia) or Type 2 (Bus/Vanagon) CV joints.

• ❌ Length Clearance: Because this is an ultra-long axle, it is critical to measure your flange-to-flange distance when the suspension is at its narrowest point. If 22.5" is even slightly too long for your track width, the axle will bottom out in the CV cup and cause catastrophic failure to the cage or transaxle.

• ❌ Spline Mismatch: This axle is designed for a 1.220" outer diameter spline. Always verify that your aftermarket CV joint internal "stars" match this specific diameter to ensure the "floating" action functions correctly and prevents cage stress.

What’s Included

• One pair of Porsche 930 CV axles

Warranty

Backed by a 1-year warranty for peace of mind.
