Axle Set - Porsche 930 CV (L-22.5") 2422
SKU 2422
Category: Porsche 930 Performance Axles
This high-performance replacement axle set is engineered for maximum spline engagement and extreme durability. At 22.5" in length, it is specifically designed for ultra-wide, long-travel suspension systems that demand the highest levels of reliability.
Performance & Fitment
Application: Porsche 930 CV Joints (108mm)
Overall Length: 22.5"
Spline Count: 28-tooth
Outer Diameter: 1.220" (Spline)
Design Feature: Floating CV Design. The 3" long splines eliminate the inboard shoulder, allowing the CV joint to "float" freely. This significantly reduces lateral stress on the CV and prevents cage breakage during extreme suspension cycling.
Included Hardware: Comes with Spirol Lock circlips for the outboard ends to ensure a fail-safe mechanical lock.
Premium Construction
Material: Manufactured from solid alloy steel for maximum torsional strength and impact resistance.
Heat Treatment: Through-hardened to achieve high tensile strength, allowing the axle to flex under high-torque loads and return to center without permanent twist.
Precision Manufacturing: Centerless ground for a perfectly consistent outside diameter, eliminating surface stress risers and ensuring a balanced rotation at high speeds.
Corrosion Protection: Powder-coated finish provides a durable barrier against moisture, salt, and abrasive off-road debris.
⚠️ Critical Fitment Exceptions
Even if you are running a 930-style setup, ensure your vehicle does not fall under these exceptions:
❌ Standard VW Drivetrains: This set is designed for the 28-spline 930 configuration. It is not compatible with standard 33-spline Volkswagen Type 1 (Bug) or Type 2 (Bus/091) CV joints.
❌ Width Verification: At 22.5", this is an exceptionally long axle. You must verify your flange-to-flange measurement at the suspension's narrowest point. If the axle is even slightly too long for your track width, it will bottom out and cause catastrophic damage to the CV cages or the transaxle case.
❌ Component Match: Verify that your CV joint "stars" are designed for a 1.220" outer diameter. Mismatched tolerances can lead to excessive play or prevent the "floating" action required to protect the cages.

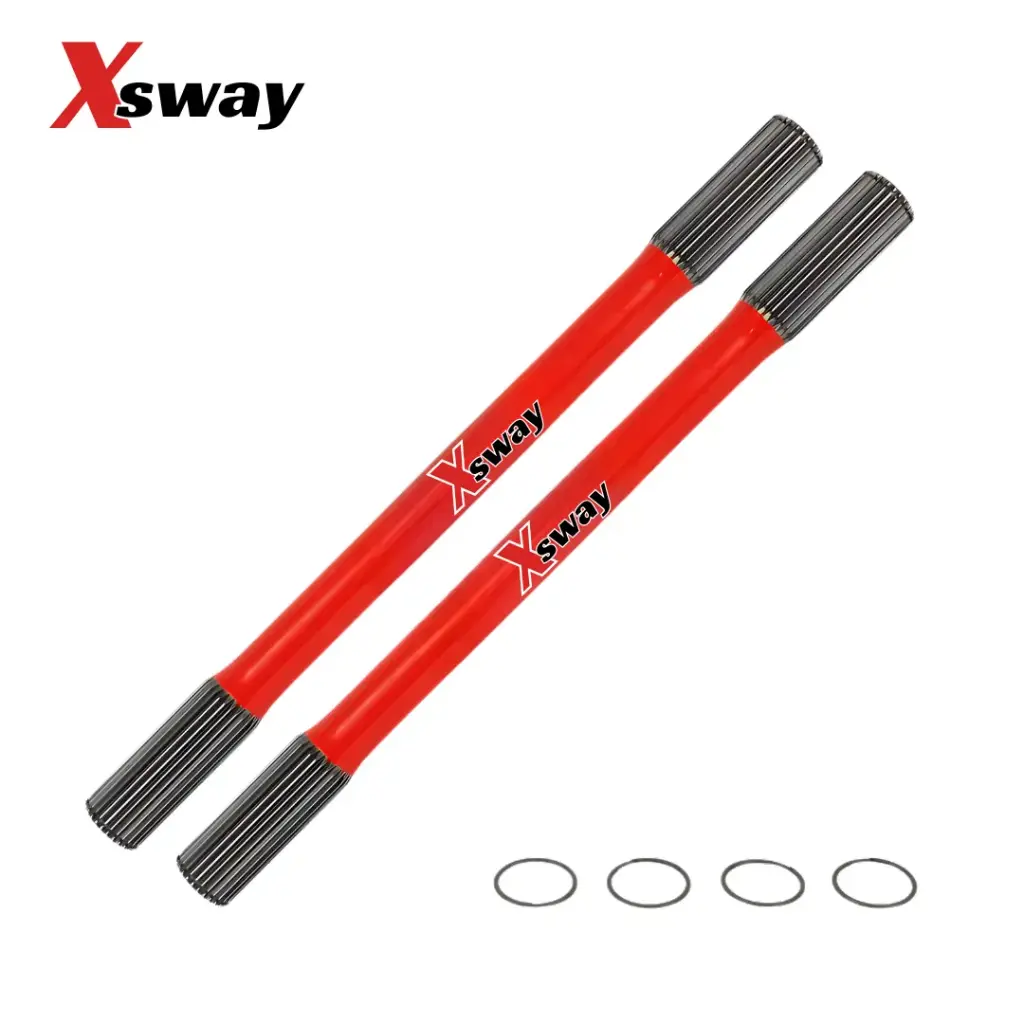

What’s Included
1 pair of axles
Spirol Lock circlips
Warranty
Backed by a 1-year warranty for peace of mind.
