Performance & Fitment

• • Application: Porsche 930 CV Joints (108mm)

  • Overall Length: 19 1/4"

  • Spline Count: 28 Teeth

  • Spline Length: 3"

  • Design Feature: Floating CV Design. The 3" spline length eliminates the inboard shoulder, allowing the CV joint to "float" along the shaft. This prevents the axle from bottoming out against the CV cage during extreme suspension travel, a leading cause of cage breakage.

  • Material: Solid high-strength alloy steel.

Premium Construction

• • Heat-Treated: Through-hardened to achieve maximum tensile strength while maintaining the torsional flexibility required for high-horsepower launches.

  • Centerless Ground: Precision-ground to ensure a perfectly consistent diameter and a smooth surface finish, which removes potential stress risers.

  • Powder-Coated: Finished with a durable coating to resist corrosion, road grime, and salt.

  • Precision Splines: CNC-machined 28-tooth splines ensure maximum surface contact and a secure interface with Porsche 930 CV stars.

⚠️ Critical Fitment Exceptions

Even if you are utilizing a Porsche 930 drivetrain, ensure your setup does not fall under these exceptions:

• ❌ Standard VW Splines: This axle is specifically for the 28-spline Porsche 930 CV. It will not fit standard 33-spline Volkswagen Beetle (Type 1) or Bus (Type 2) CV joints.

• ❌ Measurement Accuracy: At 19 1/4", this is a long-travel axle. You must measure your flange-to-flange distance when the suspension is at its narrowest point. If the axle is too long, it will shatter the CV cages or damage the transaxle regardless of the "floating" design.

• ❌ Boot Clearance: Due to the 3" spline length and floating design, ensure your CV boots are high-quality, high-articulation silicone or rubber to accommodate the increased range of motion without tearing.

What’s Included

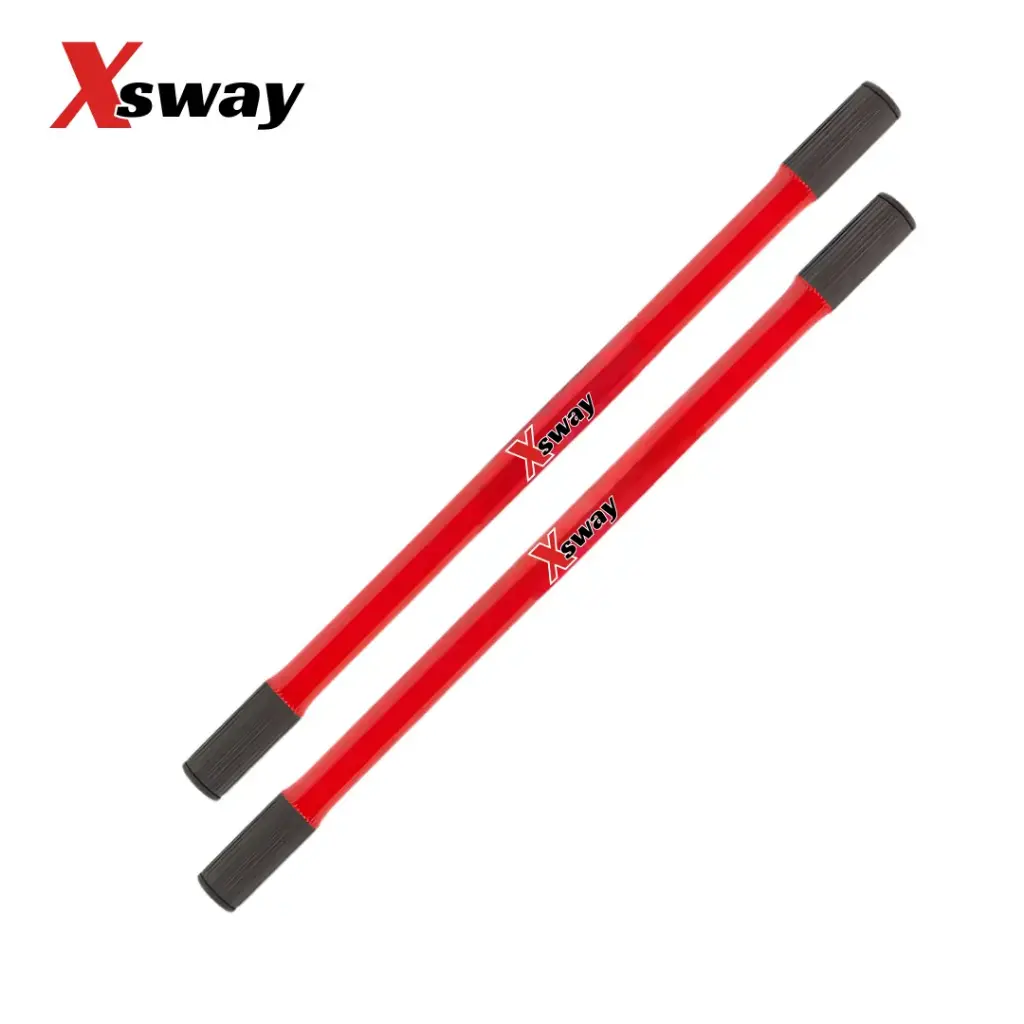

• One pair of Porsche 930 CV axles
• Spirol Lock circlips for secure CV joint fitment

Warranty

Backed by a 1-year warranty for peace of mind.
