Performance & Fitment

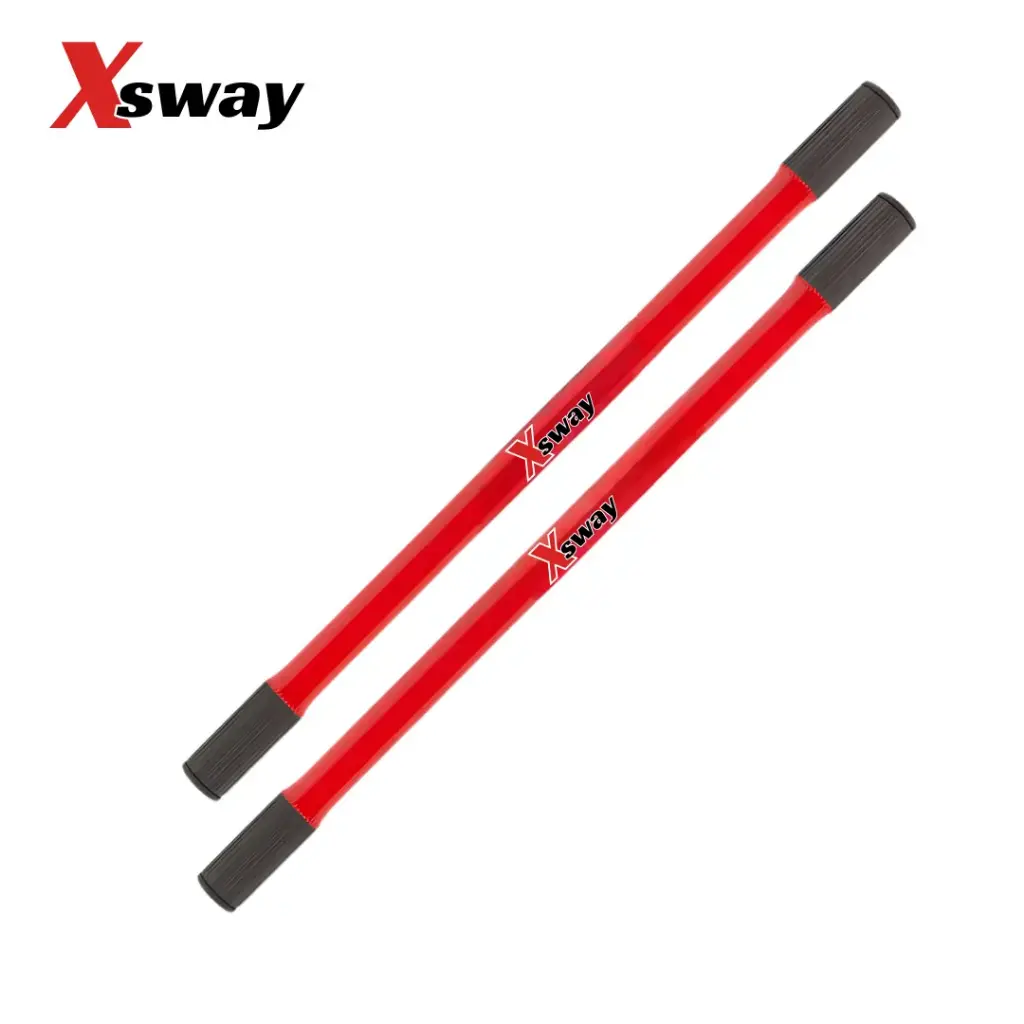

• • Application: Porsche 930 CV Joints (108mm)

  • Overall Length: 17 1/4"

  • Spline Count: 28-tooth

  • Outer Diameter: 1.220" (Spline)

  • Design Feature: Floating CV Design, engineered to allow the CV joint to travel along the spline, significantly reducing lateral stress and preventing cage breakage during maximum suspension travel.

  • Versatility: This 17 1/4" length is a common standard for long-travel off-road buggies and performance mid-engine builds.

Premium Construction

• • Material: Solid alloy steel for superior strength and high torsional yield.

  • Heat Treatment: Heat-treated for enhanced durability, providing the "memory" needed to withstand repetitive high-torque loading.

  • Manufacturing: Centerless ground for precise fitment and a perfectly balanced shaft, ensuring smooth operation at high speeds.

  • Finish: Powder-coated for long-lasting corrosion resistance against the elements.

⚠️ Critical Fitment Exceptions

Even if you are running a Porsche 930 setup, ensure your vehicle does not fall under these exceptions:

• ❌ Standard VW Components: This axle is designed for 28-spline 930 joints only. It will not fit standard 33-spline Volkswagen Type 1 (Bug) or Type 2 (Bus) CV joints.

• ❌ Suspension Compression Limits: You must measure your flange-to-flange distance when the suspension is at its narrowest point (typically when the axle is perfectly horizontal). If 17 1/4" is too long for your specific chassis width, the axle will bottom out and shatter the CV cage.

• ❌ Spline Diameter Verification: While 1.220" is the standard for 28-tooth 930 stars, always verify your CV internal star diameter. Mismatched tolerances can lead to excessive play or an inability to slide the joint onto the shaft.

What’s Included

• One pair of Porsche 930 CV axles

Warranty

Backed by a 1-year warranty for peace of mind.
