Performance & Fitment

• • Designed for: Porsche 930 CV Joints (108mm)

  • Spline Count: 28

  • Application: Ideal for long-travel sand rails, high-horsepower Volkswagen conversions, and custom Porsche builds where standard axles cannot handle the increased articulation or power.

  • Compatibility: Specifically engineered to mate with 28-spline 930-style CV joints, the industry standard for high-strength independent rear suspension (IRS) builds.

Premium Construction

• • Material: Manufactured from solid alloy steel, offering a significantly higher yield strength than OEM components to prevent twisting and snapping under extreme load.

  • Custom Engineering: Features a custom diameter optimized for the specific application's stress requirements, ensuring the axle acts as a torsion bar to protect the transaxle.

  • Precision Manufacturing: CNC-machined and centerless ground for a perfectly concentric shaft, eliminating vibrations and reducing wear on CV internal stars.

  • Secure Fitment: Precision-cut 28-tooth splines ensure maximum surface contact and a "slop-free" connection to the CV joint.

⚠️ Critical Fitment Exceptions

Even if you are utilizing a 930-style drivetrain, ensure your setup does not fall under these exceptions:

• ❌ Standard VW Type 1 or Type 2 CVs: This axle features a 28-spline count specific to 930 joints. It will not fit standard VW Bug (33-spline) or Bus/Vanagon CV joints.

• ❌ Length Miscalculations: Custom axles must be measured at the suspension's "narrowest" point (axles horizontal). If the axle is too long, it will bottom out in the CV cup and shatter the cage; if too short, it may pull out of the splines at full droop.

• ❌ Mismatched Spline Counts: Always verify your CV joint "star" spline count. While most 930 joints are 28-spline, some aftermarket "super-strength" variants utilize 30 or 33-spline configurations which are incompatible with this shaft.

What’s Included

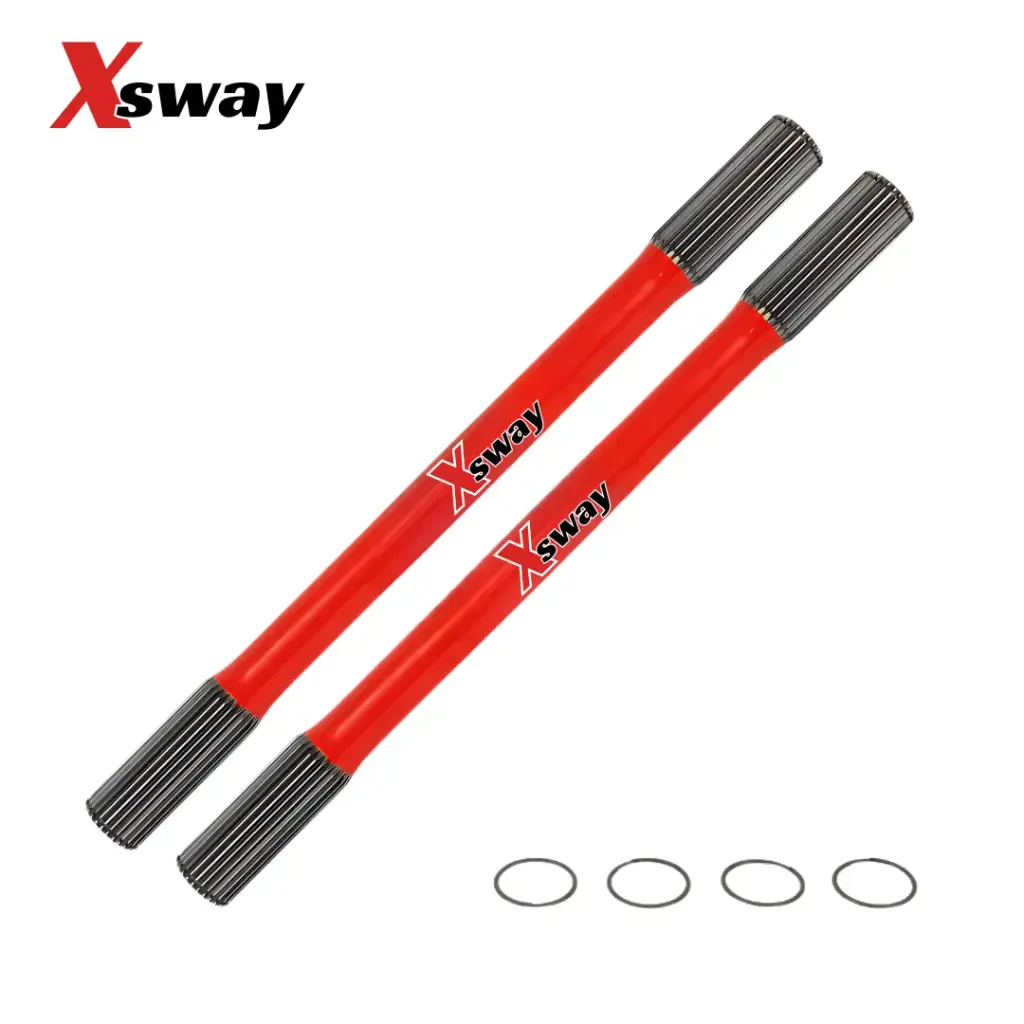

• One pair of custom Porsche 930 axles

Warranty

Backed by a 1-year warranty for peace of mind.

3 in stock (can be backordered)
