VW IRS Axle Set - 33 Tooth Spline

VW IRS Axle Set - 33 Tooth Spline

https://www.x-sway.com/web/image/product.template/11007/image_1920?unique=74e62c6
SKU 2016-7

Category: Volkswagen IRS High-Performance Axles

The 16 3/4" axle set is the "extra-long" solution for highly modified Volkswagen IRS (Independent Rear Suspension) vehicles. These axles are specifically engineered for custom wide-track off-road builds, sand rails, or long-travel Baja Bugs that utilize significantly widened trailing arms. By featuring a specialized "shoulderless" spline, these axles prevent the mechanical "punching" that leads to catastrophic CV joint failure in high-articulation setups.

Performance & Fitment

  • Application: Extra-Long / Wide-Track IRS Rear Axle Set
  • Length: 16 3/4"
  • Spline: 33-Tooth (1.062" OD, 2 3/8" spline length)

    • VW Type 1 (Beetle/Bug): Optimized for competition-level "Baja" builds with widened suspension geometry.

    • VW Type 2 (Bus/Transporter): Heavy-duty replacement for custom-tracked IRS conversions.

    • VW Type 3: Fits IRS models requiring maximum axle reach.

    • Compatibility: Designed for standard 33-spline CV joints (Type 1, 924/944, or 002/Bus styles).

    • Premium Construction

    • Material: Forged from solid high-strength alloy steel, capable of handling high torque loads from performance engines.

    • Floating Spline Design: The 2 3/8" extended spline eliminates the inboard shoulder. This allows the CV joint to slide or "float" along the shaft, accommodating the radical changes in axle distance that occur during long-travel suspension movement.

    • Heat Treatment: Through-hardened to optimize the balance between surface durability and torsional flexibility.

    • Manufacturing: Centerless ground for a perfectly consistent diameter, removing surface imperfections that could become stress risers under heavy load.

    • Finish: Industrial powder coating for superior corrosion resistance against mud, sand, and salt.

    • ⚠️ Technical Installation Notes

  • Precision Measurement: At 16 3/4", these are significantly longer than stock. You must cycle your suspension through its full range of motion (from full "droop" to full compression) to ensure the axle does not bottom out against the transmission or hub flanges.

  • CV Joint Clearance: Because the joint "floats" across the spline, ensure you use high-articulation boots that can handle the increased lateral movement without tearing.

  • Lubrication: Use a high-quality grease with high molybdenum (moly) content. The floating action requires constant lubrication on the splines to prevent "notching" and ensure the joint slides smoothly during suspension travel.

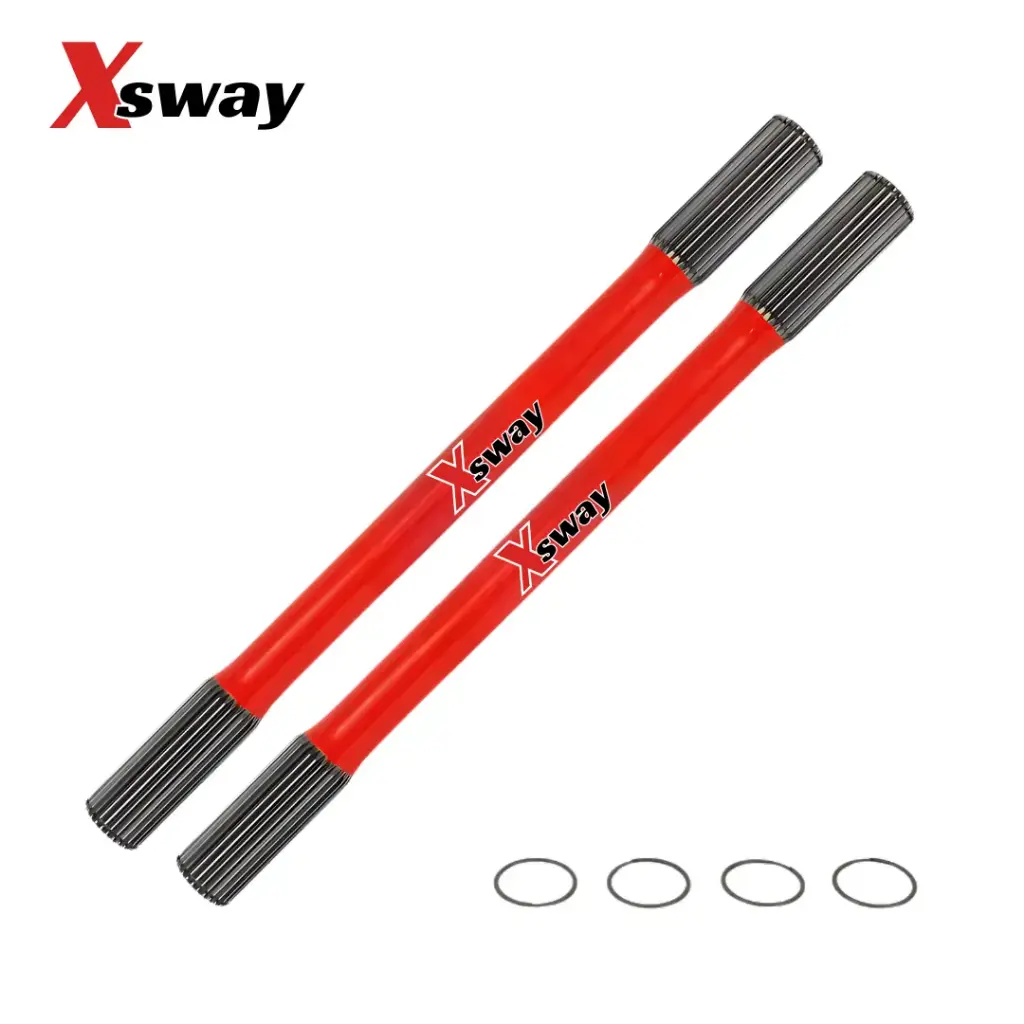

What’s Included

  • Pair of VW IRS axles
  • Spirol Lock circlips to secure the CV joint

Warranty

Backed by a 1-year warranty for peace of mind.
