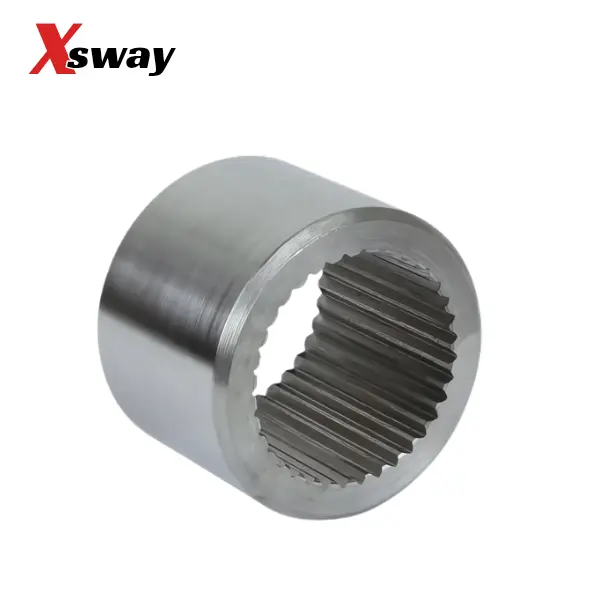

Splined Collar – 1 1/2″-35 Spline, 2" OD x 1.500" Long

SKU 9050

Category: Fabrication / Splined Collars

The Sway-A-Way 1 1/2"-35 Splined Collar is a critical component for professional fabricators building custom off-road sway bar arms, torsion bar keys, or adjustable suspension links. Machined from high-weldability 10XX series steel, this collar is designed to be welded directly into custom arms, providing a high-strength interface that handles the massive torsional loads of long-travel off-road racing.

Technical Specifications

Premium Construction & Fabrication Benefits

• Superior Weldability: The 10XX series steel is specifically chosen for its metallurgical stability during welding, minimizing the risk of heat-affected zone (HAZ) brittleness in critical suspension joints.

• Precision Broaching: Internal splines are broached to exact tolerances to ensure a "no-slop" fit on 1.5" sway bars, preventing spline galling and premature wear under cycling.

• Fabricator Friendly: Features a 45° chamfered edge on the outer diameter to provide a deep, consistent weld puddle path, ensuring maximum penetration when joining to plate or tube arms.

• High Torsional Load Capacity: Engineered to withstand the extreme leverage found in trophy trucks, rock crawlers, and Ultra4 racing vehicles.

⚠️ Fabrication & Fitment Note

• Spline Matching: This collar is only compatible with 1 1/2" - 35 Spline bars. It will not fit 1.25" or 30-spline configurations.

• Heat Management: When welding, it is recommended to use a heat sink or a dummy shaft to prevent spline distortion. Overheating can cause the internal diameter to shrink or "oval," making bar installation difficult.

• Spline Timing: When welding into a pair of arms, ensure your spline "clocking" is indexed identically on both sides to maintain a level chassis.

What’s Included

• (1) Precision-broached 1.5" x 35-spline steel collar

Warranty

Backed by a 1-year warranty for peace of mind.
